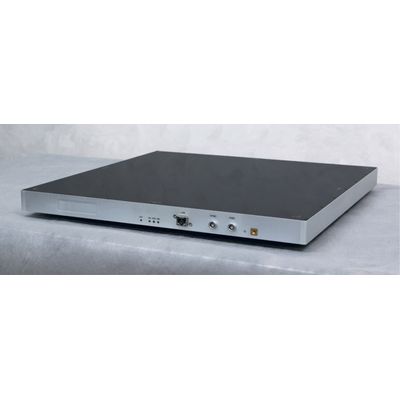

Medical Scientific - Model SOLO DR 4343F - Digital X-Ray Detector
17x17" (43x43cm) Digital Flat Panel X-Ray Detector with 140 micron pixel size. The high resolution and low noise characteristics of the SOLO™ DR 4343F ensure an exceptional image for diagnostic evaluation, while high sensitivity helps manage the dose required for examinations. The detector is used for acquiring digital x-ray images for all types of radiographic examinations. The standard full-sized active area of the detector is perfect for imaging large areas of interest, such as the chest and pelvis. The SOLO™ DR 4343F provides a state-of-the-art and dependable solution for OEM manufacturers to obtain superior image quality and further demonstrate the diagnostic capability of their x-ray products over a wide range of radiographic systems.
- Direct deposition CsI Scintillator
- State-of-the-art a-Si TFT Array
- High sensitivity
- Low Noise
- Superior DQE and MTF
- High Speed GigE Vision Interface
- Proprietary image enhancement through onboard software and hardware features
- Fast processing for dual energy examinations
- Complete set of software tools (SDK, Drivers, Service Tools, etc.)
Detector Technology: a-Si TFT
Scintillator: Direct Deposited CsI or Gadox
Number of Pixels: 3072 x 3072
Pixel Pitch: 140 μm
A/D Conversion: 16 bits
Interface: GigE Vision
Ingress Protection: IP 21
Storage Temperature: 0ºC to + 55ºC
Operating Temperature: +10ºC to + 35ºC
Power Supply: 24 VDC, 1 A (max)
Dimensions: 464 x 462 x 33 mm (Dimensions are for reference only)
Weight: 7 kg
