LAND® - Model DTT - Drawing Tower Fixed Spot Non-Contact Thermometer / Pyrometer
The DTT is a short-wavelength non-contact infrared Furnace Thermometer designed to provide temperature measurement for optical fibre drawing tower furnaces.
Most popular related searches:
Non-contact thermometer, infrared temperature monitoring, temperature monitoring pyrometer, thermometer, remote sensing, power generation, non-contact temperature monitoring, industrial power, temperature measurement, thermal, infrared
A highly accurate temperature measurement of optical fibre drawing tower furnaces
A highly accurate temperature measurement of optical fibre drawing tower furnaces, DTT is a Drawing Tower Thermometer that enables production of high quality, low loss optical fibre to the required strength and attenuation.
As LAND’s market-leading infrared technology avoids the practical issues associated with contact measurement methods in high temperatures, DTT improves process control to ensure a high-quality product is made without unnecessary waste.
As the furnace lining can get close to melting point in the process, the furnace temperature is used as the heating control parameter. DTT’s silicon cell detector offers the high stability, rapid response, and sensitivity to temperature change needed to monitor temperature accurately and safely.
Designed for standalone operation and available in two models optimised for different temperature ranges, DTT provides the communications fibre optic industry a highly precise temperature measurement solution for optical fibre production.
HIGH ACCURACY AT HIGH TEMPERATURES
Designed to operate in furnaces with typical temperatures of 2200 °C (4000 °F), the DTT uses a short wavelength and silicon cell detector to provide a stable measurement which responds quickly and sensitively to temperature changes.
SMALL TARGET CAPABILITY
The thermometer only needs a small target size to make an accurate reading, making it easy to install and flexible to position in induction heated furnaces or graphite resistance furnaces, where fields of view are limited.
EASY TO INTEGRATE AND INSTALL
With a rugged, flexible and modular design, the DTT uses industry standard outputs, meaning it suits any process monitoring, recording or control system. It has conventional industry mountings, and can be individually certified traceable to National Standards.

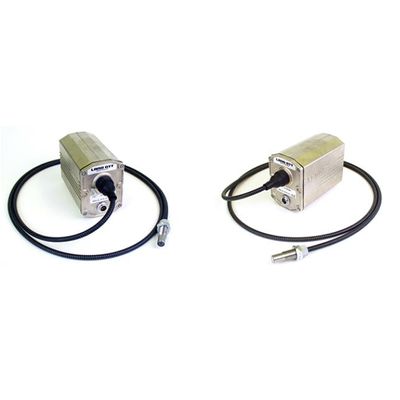

DTT Temperature Sensor
The DTT is Land’s non-contact solution designed for optical fibre drawing tower furnaces.
- Fibre-Optic Communication
