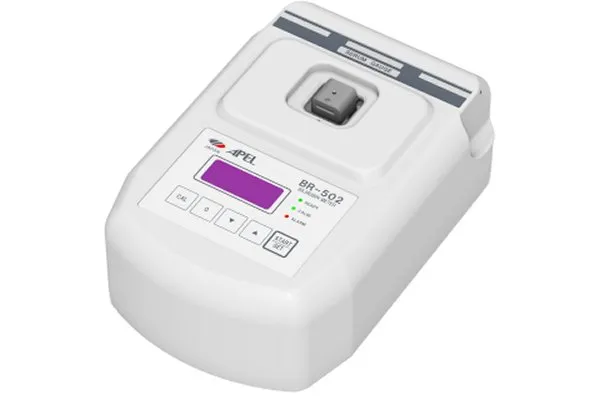

APEL - Model BR-502 - Dual Wavelength Total Bilirubin Meter
Easy to operate thanks to advanced electronic circuits like our proprietary auto-zero system. Auto-zero function : Easy to operate thanks to advanced electronic circuits like our proprietary auto-zero system. Easy setting of the sample tube. A sample gauge provided on the surface of BR-501, which indicates the proper sample volume to be inspected. Only simple action is required to set the capillary tube into the holder. Handles hemolysis and turbidity easily. Careful selection of the dual wavelength color filters and the combination of electronic technology minimize the interference of hemolysis and turbidity. Particularly suitable for jaundice examinations of neonates.
- Standard solution(ABY) : 2 bottles
- Capillary tube(Heparinized, Red) : 1 vial(100pcs)
- Capillary tube(Plain, Blue) : 1 vial(100pcs)
- Clay sealer(Wax Plate) : 1 pc
- AC Adapter : 1 pc
- Power cord : 1 copy
- Operation manual : 1 copy
AC adapter
Power requirement is flexible from 100 to 240 VAC.
Alarm lamp informs user of abnormalities
Alarm lamp signals hemolysis of 250mg/dl or more.
Light source
BR-502 does not need a lamp replacement thanks to the LED light source.
- Method : Dual Wavelength (461 nm, 577 nm)
- Measurement Range : 0 - 30 mg/dL(Total bilirubin)
- Correcting hemolysis : 0 - 250 mg/dL
- Measuring accuracy : ± 5 %
- Sample Volume : 50 - 60 μL
- Display : 3 1/2 digits 7 segment red LED
- Sample Container : Hematocrit capillary tube(Heparinized)
- Light source : LED
- Detector : High sensitivity silicon photocell
- Power : 100 - 240 VAC 50/60 Hz
- Dimensions : 150 (W) X 225 (D) X 90 (H) mm
- Weight : Around 1.0kg (main body)
