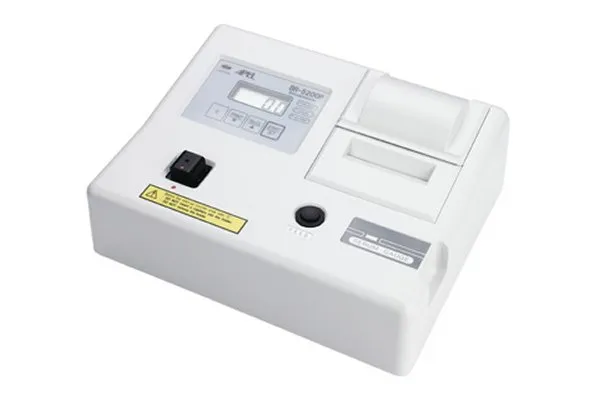

APEL - Model BR-5200P - Dual Wavelength Total Bilirubin Meter for Neonates
Very quick measurement. Max. one second measurement time.. Built-in printer. Compact thermal printer is built in. No lamp replacement. BR-5200P does not need a lamp replacement thanks to the LED light source.. Easy set of the sample tube. A sample gauge provided on the surface of BR-5200P, which indicates the proper sample volume to be inspected. Only simple action is required to set the capillary tube into the holder.
Compact & light weight
BR-5200P foot print is small and weights only 1.7kg.
Handles hemolysis and turbidity easily
The dual wavelength measuring method of BR-5200P eliminates interference of hemolysis and turbidity.
Computer connection.
BR-5200P has a USB interface for connection with computer.
Free of calibration hassle
Once BR-5200P is calibrated, no more daily calibration is required.
- Method: Dual Wavelength (461 and 577nm)
- Measurement Range: 0 - 30mg/dL(Total bilirubin)
- Correcting hemolysis: 0 - 250 m/dL
- Measuring accuracy: ±5 %
- Sample Volume: 50 - 60μL
- Display: 3 1/2 LCD display
- Sample Container: Hematocrit capillary tube
- Light source: High bright LED
- Detector: High sensitivite silicon photocell
- Interface: USB
- Power: 100-240VAC 50/60Hz AC adapter
- Dimensions: 262 (W) X 214 (D) X 109 (H) mm
- Weight: Around 1.7kg (main body)
- Standard solution(ABY): 2 bottles
- Capillary tube(Heparinized, Red): 1 vial(100pcs)
- Capillary tube(Plain, Blue): 1 vial(100pcs)
- Clay sealer(Wax Plate): 1 pc
- USB Cable: 1 pc
- PC software(CD-ROM): 1 pc
- AC/DC power code: 1 pc
- Operation manual: 1 copy
- Thermal paper roll: 1 roll
