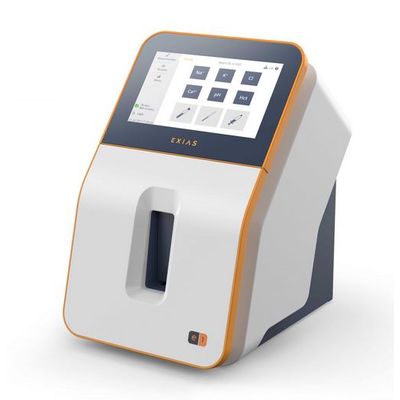

EXIAS - Model e|1 - Electrolyte Analyzer
The EXIAS e|1 Analyzer is an electrolyte system intended for in-vitro measurements of Na+, K+, Cl-, Ca2+ as well as pH and Hct, in whole blood, serum and plasma.
Most popular related searches
High accuracy, ease of use and the maintenance free system underline the operational functionally and outstanding performance of our e|1 Analyzer.
Robust and clever design combined with a compact footprint make the e|1 Analyzer well suited for both point-of-care environment and laboratory.
Na+ K+ Cl–
Ca2+ pH Hct
Flexible sample input
sample tube, capillaries, syringes
All-in-one cartridge
20 µL
lowest sample volume
25 sec
fastest system
oQC
on-board quality control
- All-in-one cartridge
- 600 samples / 28 days
- 300 samples / 28 days
- 150 samples / 28 days
- Optional: on-board QC
- (oQC), 3 levels
- Sample container
- sample tubes, capillaries, syringes
- (no adapters required)
- Calibration time
- 35 sec. for 2-point calibration
- Interval: 4, 8, 12 hr
- (programmable)
- Touch display
- 7’’ / 800 x 480 px
- Printer
- Built-in thermal printer
- Dimensions
- 20 x 31 x 28 cm (W x H x D)
The e|1 cartridge includes
- Sensors, solutions, waste
- All wear & tear parts like tubings, sample input
and valves etc.
Optional
- On-board QC (oQC), 3 levels
- Data exchange with LIS according to LIS2-A2 protocol (ASTM)
- Export of data to USB flash drive (results, settings, etc.)
- Network connection via LAN (RJ45)
Optional
- WiFi-dongle
- Barcode reader
