Shanghai Shiyin Photoelectric Instrument Co., Ltd.

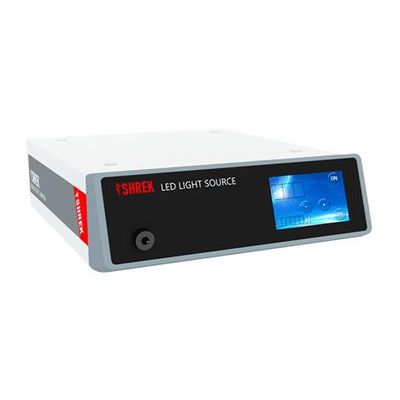

SHREK - Model SY-GW1000L-N - Endoscope LED Cold Light Source 100W
SY-GW1000L-N can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
Most popular related searches
endoscope
endoscopy
endoscopy LED light source
surgery endoscopy
endoscopy surgery
endoscopy discectomy
endoscopy LED
rigid endoscopy
ent pted
arthroscopy ent
- Our endoscope camera system use 304 stainless steel, brushed metal which contributes to cleaning, disinfection and maintenance. Color of machine appearance wont change for long-term use.
- Set screws use stainless steel material, so screws wont rust off and cause electrical short which extends service life of machine.
- Baseboard of inner circuit board uses simple brass and protection cover, which is effective protection to antijamming of circuit and ground connection.
- High brightness is comparable to 350W traditional xenon light source, could be used for all rigid endoscope surgery without any problem.
- Long working life, it could last more than 40000 hours, 120 times of xenon, so you do not need to replace the bulb for years.
- Wide range power from 100-240V/AC; 50/60 Hz.
- Perfect color temperature 5000K to 6500K, color rendering is over 70.
- Does not emit light in UV or IR.
- Customized connector, it accepts fiber light guides with active areas ranging from 3 mm to 10 mm diameter.
- Input power: 100VA
- Power supply: AC100-240V 50/60Hz
- Light source: LED light
- Effective light power: ≥100mW
- Brightness: ≥1,200,000lx
- Color temperature: 6000±500K
- Noise: ≤55dB(A)
- Surface temperatures: ≤60?
- Light out: Diameter: (10±0.10)mm
- Host fuse: T2AL 250V AC
- Working environment: 5?~40?
