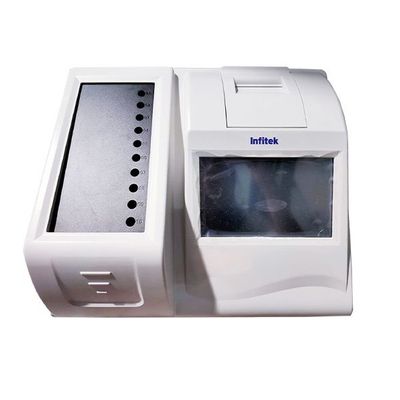

Infitek - Model ESRA-10 - ESR analyzer

1. Large color display, touch screen
2. 10 channels, up to 20T/H
3. Twoworking method: 30 mins or 60 mins
4. ESR curve display and print out
5. Barcode reader optional
6. Can connect LIS

Item: ESRA-10

• Field of application: Erythrocyte sedimentation rate analysis
• Measuring principle: Infrared sensor
• Analysis result: Westergren ESR value (mm/hr)
• Throughput: Up to 20 samples per hour
• Reading channels: 10
• Loading capacity: 10 sample at same time
• Loading pattern: Random
• Measuring time: 30 minutes or 60 minutes selectable
• Sample interval: 3 minutes
• Measurement range: (1-140)mm/h
• Temperature compensation: Refer to 18°C automatically (selectable)
• Reading resolution: ±0.1mm
• Result resolution: 1mm/1h, 1mm/2h
• Blood level range: 50mm~64mm
• Display: Color LCD screen
• Input: Touch screen
• Interface: RS-232 serial port
• Print: Internal thermal recorder
• Storage: 4,000 results
• Power supply: AC100-240V, 50-60Hz, 50W
• Operation conditions: Temperature 5C°~40°C  Humidity ≤80%
• Dimension: 365mm×300mm×180mm(L×W×H)
• Net weight: 11Kg
