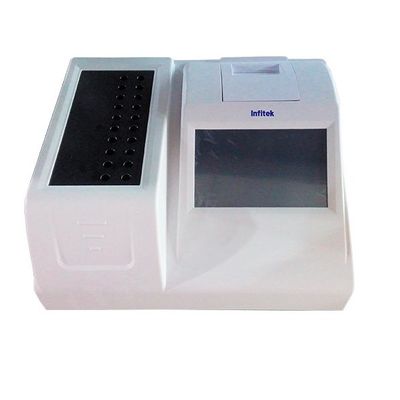

Infitek - Model ESRA-20 - ESR Analyzer
Loading capacity: 20 sample at same time. Measuring time: 30/60 minutes selectable
Throughput: 40 samples per hour. Storage: 4,000 results. Analysis result: Westergren ESR value (mm/hr).
Most popular related searches
in vitro diagnostic medical device
vitro diagnostic medical device
in vitro diagnostic medical
erythrocyte sedimentation rate
diagnostic medical device
in vitro medical
erythrocyte sedimentation
medical diagnostic
medical device
medical diagnostic system
- Large color display, touch screen
- 20 channels, up to 40T/H
- Two working method: 30 mins or 60 mins
- ESR curve display and print out
- Barcode reader optional
- Can connect LIS
- Item: ESR analyzer, ESRA-20
- Field of application: Erythrocyte sedimentation rate analysis
- Measuring principle: Infrared sensor
- Analysis result: Westergren ESR value (mm/hr)
- Throughput: Up to 40 samples per hour
- Reading channels: 20
- Loading capacity: 20 sample at same time
- Loading pattern: Random
- Measuring time: 30 minutes or 60 minutes selectable
- Sample interval: 3 minutes
- Measurement range: (1-140)mm/h
- Temperature compensation: Refer to 18°C automatically (selectable)
- Reading resolution: ±0.1mm
- Result resolution: 1mm/1h, 1mm/2h
- Blood level range: 50mm~64mm
- Display: Color LCD screen
- Input: Touch screen
- Interface: RS-232 serial port
- Print: Internal thermal recorder
- Storage: 4,000 results
- Power supply: AC100-240V, 50-60Hz, 50W
- Operation conditions: Temperature 5C°~40°C Humidity ≤80%
- Dimension: 365mm×300mm×180mm(L×W×H)
- Net weight: 11Kg
