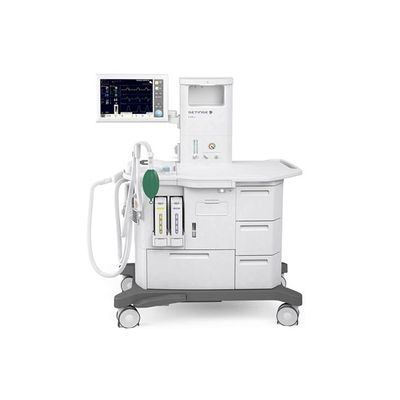

Flow-e Anesthesia Machine
Flow-e is the extended, flexible workstation for personalized anesthesia delivery. Featuring Getinge`s proprietary innovations, the machine ensures efficient ventilation performance and personalized care for a wide range of patients. With a larger worktop, more storage space, and generous mounting options for auxiliary equipment, Flow-e can be customized to match your needs and preferences.
Our unique technologies make the difference when every measure matters.
- Automatic Recruitment maneuver to impact post-operative pulmonary complications
- MAC Brain – visualizing agent concentration in the target organ
- The Flow core technology for excellent ventilation performance
- Reduce total PEEP with the ability to set and deliver real ZEEP
- Leakage compensation leading to uninterrupted ventilation
- Low-flow anesthesia with a FGF (Fresh Gas Flow) limit of 0.1 l/min, and with visual guidance
- Active hypoxic guard, the O2Guard, for added safety
- Large workspace and generous storage
- Intuitive touch screen, tiltable and rotatable
- Convenient maintenance and training
Every detail of the Flow-e has been designed in collaboration with clinicians, ensuring personalized care with high efficiency.
The intuitive touchscreen, with quick access presets, gives you one point of control for all functions.
An unmatched length of stepless rails (110"/278cm) enables you to add all the monitors and accessories you need.
Smart clips, hooks and arms
For convenient placement of suction device, manual breathing bag and other accessories.
Convenient USB and light
A useful shelf gives easy access to the USB ports. The workspace is lit by a dimmable LED lamp.
Drawers
Well-designed drawers take care of your space and storage needs.
Low-flow anesthesia the safest[1] way
Unique hypoxic guard protects your patients.
Reduce the riskof hypoxia with O2Guard
Our O2Guard is the world’s only system for active hypoxia prevention[1]. Should the inspired oxygen level drop below 21%, the O2Guard automatically overrules the settings and increases the flow of oxygen. The risk of hypoxia is minimized.[3]
Visual guidancewhen lowering the flows
The VRI (Volume Reflector Indicator) is a useful visual guide that enables you to optimize the rebreathing fraction and thus save anesthetic agent.
This tool makes it simple to set the optimal Fresh Gas Flow (FGF) and minute volume ratio. Agent consumption can easily be monitored via the interface.
Battle atelectasis with stepwise lung recruitmentStepwise and automated lung recruitment aims to gently open the alveoli. Breath-by-breath compliance, trending the effect of the maneuver can be monitored in real time.
MAC BrainDue to pharmacokinetics there is a time delay in agent concentrations between the lungs and the target organ, the brain. The unique MAC Brain tool visualizes the difference to support better dosing and planning of agent delivery.
The Flow family was created by the engineers behind the world-class Servo ventilator platform. The innovative technology at the heart of the Flow anesthesia machines ensures superior ventilation performance with significantly reduced anesthetic agent usage. [2], [3]
Volume Reflector
Our patented Volume Reflector is a smart rebreathing system. In combination with Servo gas modules, it enables accurate tidal volumes down to 5 ml, providing better ventilation performance compared to bag-in-bottle, turbine and piston-operated systems.[2]
The rigid Volume Reflector is never empty to ensure uninterrupted ventilation, and compensates effectively for leakage.
To minimize the risk of hypoxic mixtures the Volume Reflector is oxygen driven. It has a small system volume for fast wash-in and wash-out and a rebreathing fraction of 98%.
The proven Servo gas modules deliver up to 200 l/min inspiratory flow and are capable of adjusting pressure and flow several times within every breath, according to each patient’s needs.
Electronic injection technology enables precise delivery of agents, primarily during the inspiratory phase, with minimal waste.
The lightweight and maintenance-free vaporizers can be refilled and exchanged while the machine is running, and do not require annual calibration.
A small system volume (2.8 l) allows fast wash-in and wash-out which saves time and agent consumption.
