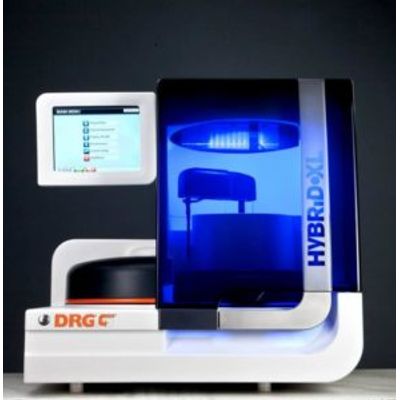

DRG:HYBRiD.XL -Â Fully Automated Analyzer for Enzyme Immunoassays & Clinical Chemistry
DRG:HYBRiD.XL® – Fully Automated Analyzer for Enzyme Immunoassays & Clinical Chemistry. DRG International, Inc. is pleased to announce that we have received FDA confirmation classifying our Hybrid XL® for U.S. diagnostic testing.
HYBRID XL: Now FDA exempt for Class I
We now offer our DRG: Hybrid-XL® Automated Analyzer as Class I 510(k) Exempt under product code JJQ along with a collection of our Hybrid XL Tests. Our compact, bench-top instrument offers you freedom to create individual assay panels for routine, as well as dedicated testing.
Click here for more information about this user-friendly, state of the art analyzer.
Watch a Full Demonstration Video of the FDA Approved Hybrid-XL®
Using innovative and unique technology the DRG HYBRiD-XL® allows, for the first time, the simultaneous measurement of immunoassays and clinical chemistry parameters, including turbidimetric tests in one sample.
Up to 40 tests of different types or 40 times of the same test, or up to 40-patient samples can be ordered by the medical practitioner over a wide range of pre-packaged tests to serve different specialties.
- Benchtop Analyzer 23.6” (H) x 23.6” (W) x 24.8” (D), 125.7 lbs.
- Noise Level
- Number of Available Wavelengths: 12
- Disposable Measurement Cuvettes
- Closed System
- LCD Touchscreen Monitor (8.5 inch.)
- CAN Bus Communication Protocol
- Smart User Guidance
- Bi-directional LIMS-ASTM, ASTM-LIS Server Software via UDP protocol
- Barcoded Master Curve
- 2 Point Recalibration
- 28 Days Stability
- Enzyme Immunoassays
- Clinical Chemistry
- Immunoturbidimetry
- 3 Primary Sample holders with 12 sample tubes each (ø13 mm, ø16 mm) or
- 2 Secondary Sample holders with 20 secondary tubes each (ø8 mm)
- Reagents on board (ready to use cartridges)
- Barcoded reading of samples & reagents
- Serum, Plasma, Urine, Saliva & Stool samples
- Minimum sample volume 5 µL (for tubes ø8 mm)
- Minimum dead volume 60 µL (300 µL for primary tubes)
- Sample onboard pre-dilution up to 1:1000
