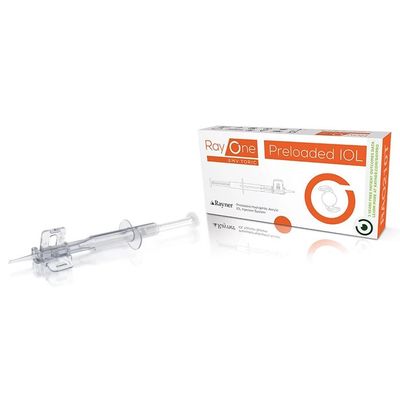

RayOne - Model RAO210T - EMV Toric - Fully Preloaded IOL Injection System

SHARE

High quality natural vision. Developed in collaboration with world renowned surgeon, Professor Graham Barrett, RayOne EMV Toric is a highly versatile lens that meets the visual needs of a large population of cataract and refractive patients3 looking for greater spectacle independence than offered by standard monofocal lenses.

Most popular related searches
intraocular lens
surgery
cataract
  • Increased range of focus: >1.5 D1,4,6 with an emmetropic target.
  • High quality natural vision: Truly non-diffractive IOL with monofocal levels of contrast sensitivity1, dysphotopsia2 and high levels of patient satisfaction.3
  • Optimised for monovision: Positive spherical aberration design and the resulting hyperopic tail provides a more natural range of vision with a smoother transition between distance and near eyes.2,4
  • Easy to integrate: A similar surgeon experience to your monofocal IOLs,5 and now available on the RayOne Toric Platform.
  • Model Name: RayOne EMV Toric
  • Model Number: RAO210T
  • Power Range: SE: +10.0 D to +25.0 D (0.5 D increments)
  • Cylinder: +0.75 D, +1.5 D, +2.25 D, +3.0 D, +3.75 D, +4.5 D
  • Delivery System Type: Fully preloaded IOL injection system
  • Incision Size: 2.2mm

Delivery System

  • Injector Type: Single use, fully preloaded IOL injection system
  • Nozzle Size: 1.65 mm
  • Bevel Angle: 45°
  • Lens Delivery: Single handed plunger

EMV IOL

  • Material: Single piece Rayacryl hydrophilic acrylic
  • Water Content: 26% in equilibrium
  • UV Protection: Benzophenone UV absorbing agent
  • UV Light Transmission: UV 10% cut-off is 380 nm
  • Refractive Index: 1.46
  • ABBE: 56
  • Overall Length: 12.50mm
  • Optic Diameter: 6.00mm
  • Optic Shape: Biconvex (positive powers)
  • Asphericity: Aspheric anterior surface
  • Optic Edge Design: Amon-Apple 360° enhanced square edge
  • Haptic Angulation: 0°, uniplanar
  • Haptic Style: Closed loop with Anti-Vaulting Haptic (AVH) technology
