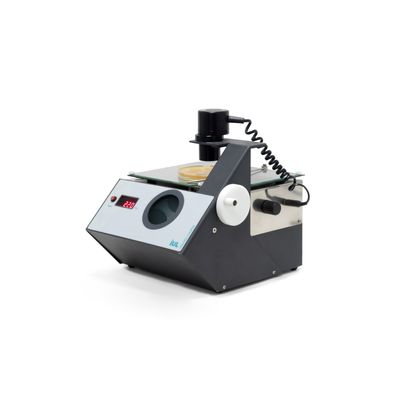

IUL - Haloes Caliper – Zone Reader
Making a precise inhibition zone measurement (100 µm resolution) manually can be challenging. The Haloes Caliper helps to perform this in a simple and precise fashion while avoiding parallax errors in readings. Pharmaceutical and clinical labs involved in inhibition zone measurements benefit from the use of this device. A precision rotating wheel accurately measures inhibition zones while being manually spun. This comes in handy in antibiotic susceptibility testing and antibiotic potency measurements.
High resolution: The Haloes Caliper has a 100 µm resolution.
No parallax error: The Haloes Caliper’s exclusive screen-lense system avoids missing the ends of the haloes through its unique perpendicular reading technology.
Clear display of results: Results will be clearly featured in a digital display.
- Magnification: Factor 2.25
- Measuring range: 0–35 mm
- Resolution: 0.1 mm
- Mains: 100/240V 50/60Hz
- Power: 15W
- Dimensions (W×D×H): 27×23×27 cm / 10.6×9.0×10.6 in
- Weight: 3 kg / 6.6 lb
Description: Cat.No.
- HALOES CALIPER Optical instrument for measuring the inhibition zone.: 9000900
