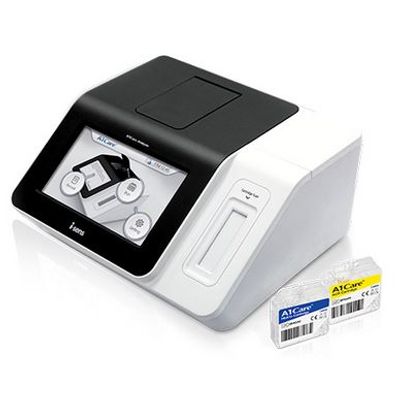

i-Sens - Model A1Care - HbA1c & ACR Analyzer

• Small, easy to use whole blood POC diabetes monitoring system
• Available tests: HbA1c & ACR (Albumin/Creatinine Ratio) test
• All-in-one cartridge system
• Fast turn around time (HbA1c: 4 minutes 20 seconds, ACR: 7 minutes)
• Small sample volume (HbA1c: 2.5 μL, ACR: 40 μL)
• NGSP & IFCC Certification (HbA1c)
• Intuitive GUI Increases user convenience
• Wide operating temperature range

Analyzer

• Dimension / Weight 290 X 250 X 130 mm / 3.8 kg
• Operating temperature 10-32°C
• Display 7 inch LCD color touchscreen
• Interface USB, Serial (RS232), LAN (RJ45 Ethernet)
• Memory 5,000 sample data items (5,000 control data items)
• Input power 100-240VAC 50/60Hz, 100VA

HbA1c Cartridge

• Sample type &
• Sample volume Whole blood (capillary or venous), 2.5μL
• Test time 4 minutes 20 seconds
• Storage temperature 1-30°C
• Period of use 12 months
• Accuracy ±6% of target value (95% CI)
• Precision CV 3%

ACR Cartridge

• Sample type &
• Sample volume Urine, 40 μL
• Test time 7 minutes
• Storage temperature 2-30°C
• Period of use 12 months
• Precision Albumin: ≤ 8 % CV, Creatinine: ≤ 8 % CV
