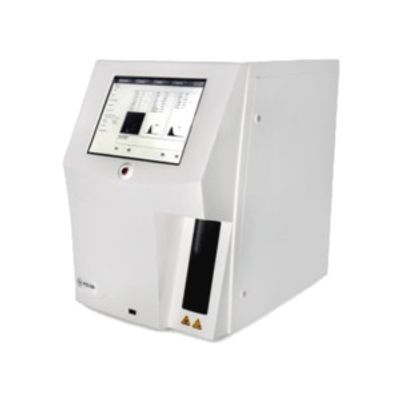

AGD - Model PCE 525 - 5 Part - Hematology Analyzer
Parameters: Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT,P-LCR, P-LCC, 4 Research parameters include IMM%, IMM#, ALY%, ALY#, Efficient irrespective of workload. Low cost per test. Simple user interface. Comprehensive analysis of results displayed in the form of scattergram and histograms. Detailed description of flags and system alerts on screen if needed. Zoom in option available for better viewing of scattergram and histograms. Input device: Built-in virtual keyboard, external barcode reader. External Laser printer / Inkjet printer, various printout formats and User-defined formats.
Principles
- Impedance method for RBC and PLT counting
- Cyanide free reagent for hemoglobin test
- Hydrodynamic Focussing + LED scatter for
- WBC differential analysis and WBC counting
Parameters
- 25 reportable parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC.
- 4 Research parameters include IMM%, IMM#, ALY%, ALY#
- 3 histograms for WBC, RBC and PLT, 1 scattergram for
- 5 Part differential
Reaget
- Routine: Diluent, lyse, Cleaner
- Maintenance: Bleach
Sample Volume
- Whole Blood (WB) 15.6 μL
- Capillary (CAP) 15.6 μL
- Pre-diluted (PD) 20.0 μL
Display
- 8.4 inch TFT Touch Screen
Throughput
- 60 samples per hour
Data Storage Capacity
- Up to 35,000 results including numeric and graphical information, 12 QC files (100 data per file)
Communication
- LAN Port supports HL7 protocol
Input device
- Built-in virtual keyboard, external barcode reader
Interface
- 5 *USB, LAN, COM Support bi-directional LIS
Printout
- External Laser printer / Inkjet printer, various printout formats and User-defined formats
Operating Environment
- Temperature: 18°C~32°C
- Air pressure: 70kPa~106kPa
- Humidity: ≤80%
Power requirement
- 100V-240V, 50Hz/60Hz
Dimension and Weight
- 406mm(D)*275mm(W)*430mm(H), 15kg
