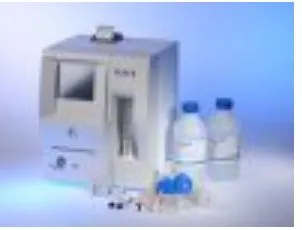

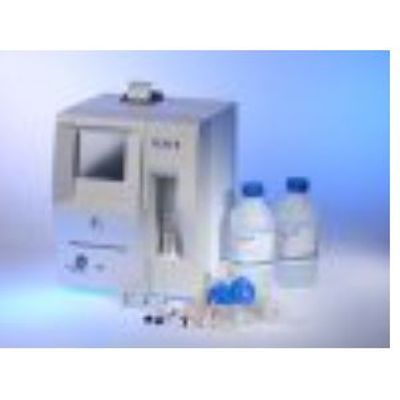

ERBA - Model ELite 3 - Hematology Analyzer for Clinical Diagnostics
The ELite 3 Hematology Analyzer is engineered for advanced hematological diagnostics, offering a three-part differential analysis essential for medical laboratories. This compact device efficiently processes up to 80 tests per hour, optimizing workflow and ensuring reliable results. Utilizing a minimal sample volume of only 25 microliters of whole blood facilitated by an automatic holder, the analyzer enhances sample efficiency. Its dual chamber system ensures heightened accuracy and precision. The analyzer measures 22 critical parameters such as white blood cell and red blood cell counts, hemoglobin, and platelet indices, providing comprehensive data with three-part histograms. With a storage capacity for 10,000 results and a built-in thermal printer offering flexible output options, data management is streamlined. Software upgrades and data backups are conveniently performed via USB ports, enhancing operational continuity. This device supports laboratories in delivering precise hematological insights crucial for patient care.
- Only 3 reagents needed (Erba Diluent-Diff, Erba Lyse-Diff, Erba Cleaner), enviroment-friendly (cyanide free)
- Built-in printer with 58 mm wide roll paper, full report with histograms
- USB interface for support: Host computer, Keyboard, External printers, Upgrade control SW, Data back-up, Hand-held barcode reader
- Usage of standard electronic and mechanic components
- Aperture made in technical ruby
- Full colour LCD touch-screen with high contrast ratio
- Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)
- User-friendly multilingual operating menu
- Sample rotor, ensuring safe and easy sampling
- Small-sized, low-maintenance needed
Measurement principles:
- Electrical impedance method
- Photometry – LED based technology
Parameters:
22 parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, MON#, GRA#, LYM%, MON%, GRA%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV, PCT, P-LCC, P-LCR + 3 histograms (WBC-3part, RBC, PLT)
Throughput: 80 tests / hour
Sample volume: 25µl of whole blood using automatic sample holder
Chambers: Dual chamber advanced system for higher accuracy & precision
Clean Modes:
- High voltage pulses on aperture
- Chemical cleaning of the aperture using Erba Cleaner reagent
- Back-flush using high-pressure
Data capacity: 10 000 results with all histograms
Data back-up method: USB mass storage device
Software upgrade method: Via USB port (using USB mass storage)
Built-in printer: Thermal printer module with 3 flexible options
- Print full report with histograms
- Only Print basic 8 parameters
- Print from memory
User interface & display:
- Full colour LCD touch-screen with high contrast ratio
- Status LED
Dimensions (W x D x H): 320 mm x 260 mm x 365 mm
Net Weight: 12 kg
