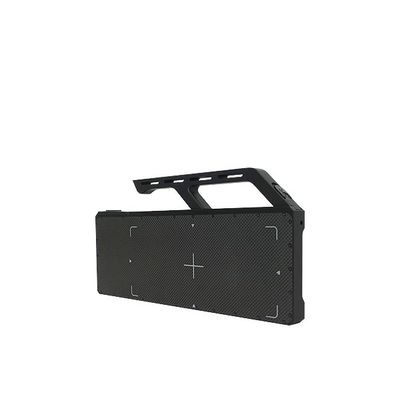

Model DRC 1024 NDT - High-Resolution Flat Panel Detector
This extremely robust and waterproof digital detector array (DDA) was designed from the ground up for maximum portability and the harsh conditions of industrial radiography.
- Suitable for X-ray and gamma sources
- Electronics shielded for use up to 350 kV
- Extremely robust design with detachable carry handle
- High resolution 76 μm pixel pitch (6.5 lp/mm)
- Built-in wireless access point
- Connector for Gigabit Ethernet and power
- 1 meter drop test pass
- Dust-tight and waterproof (IP67)
- For stationary and mobile applications
Active area: 97 mm x 233 mm (3.82" x 9.2")
Dimensions
(H x W x D): 132 mm x 335 mm x 30 mm (without handle)
Weight: 2.2 kg (4.9 lbs)
Number of pixels: 1280 x 3072
Exposure time: 0.5 s to 180 s
Image transfer time
(wired/wireless): 1.9 s / 2.6 s
Max. energy: 350 kV (for long life in typical applications), Isotopes (higher energies possible)
Pixel pitch: 76 μm
Scintillator: GOS
ADC: 16-bit
Interface: Gigabit Ethernet, WLAN: 2.4 GHz (802.11abgn) / 5 GHz (802.11ac)
Battery: Lithium-ion (11.25 V, 33.2 Wh)
Operating conditions: 0 to 45°C (32 to 113°F), 30 to 85 % humidity
Protection level: IP67 (dust-tight and waterproof)
Housing: Aluminum frame, carbon-fiber entrance window
Software: DÜRR NDT D-Tect X
Scope of supply: Detector, 2 batteries, battery charger, Ethernet and power adapter cable
High-resolution
76 μm pixel pitch
Compact design
10 x 24 cm active area, perfect for weld inspection
Lightweight & ruggedized
2.2 kg / 1 m drop test pass
