Pinnacle Spine Group
InFill - Model V2 - Interbody Fusion Systems
InFill Interbody Fusion Systems patented in situ graft delivery solution represents an evolution in addressing the biologic void in spine fusion.
Most popular related searches
interbody fusion system
bone graft material
spinal fusion system
bone graft
bone material
spinal fusion
implant insertion
implant
surgery
- Unique access port secures implant to inserter and allows for both device placement in the disc space and precise, controlled delivery of graft material in situ.
- Large graft chamber allows greater volume of bone graft material.
- Distinctive tooth geometry within the graft chamber helps secure bone graft material when using traditional pre-packing method.
- Large load bearing surface area restores and maintains disc height, and helps to prevent subsidence by maximizing contact with the apophyseal ring.
- Bulleted tip aids in distraction for easy insertion.

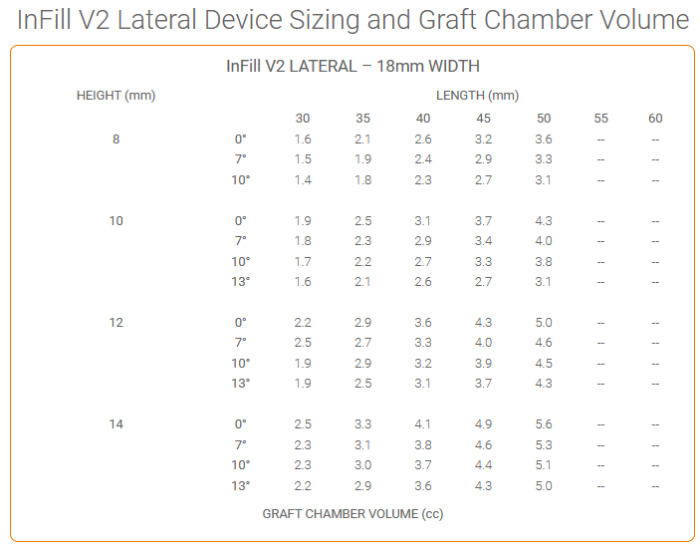

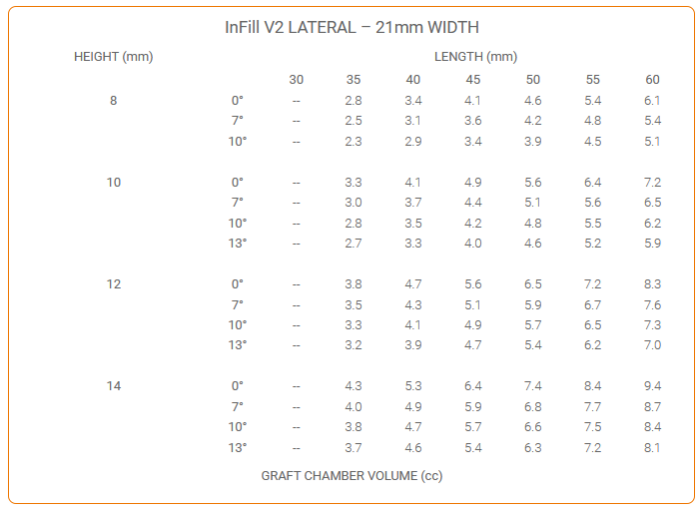

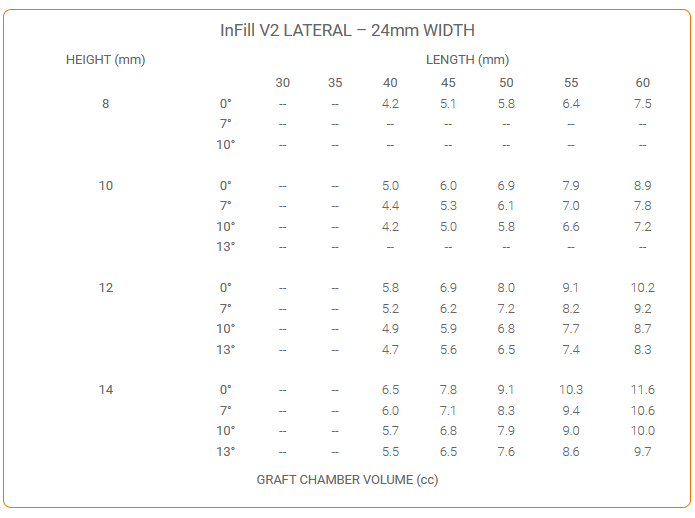

- Width of 18mm, 21mm and 24mm for maximum surgeon choice.
- Lengths ranging from 30mm to 60mm, heights ranging from 8mm to 14mm, and lordotic angles of 0°, 7°, 10°, 13°.
