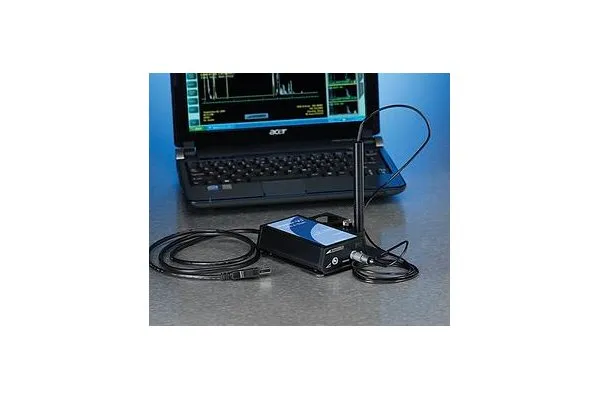

Escalon - Model Master-Vu - Laptop-Based A-Scan and B-Scan System

A-SCAN

• Immersion or direct contact A-scan
• Manual or automatic capture (cataract, dense cataract, aphakic, silicone oil, and pseudophakic modes)
• Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous, with axial length average and standard deviation provided for up to 5scans per exam
• Standard IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis (optional)
• Post-refractive IOL formulas include Latkany Myopic Regression, Latkany Hyperopic, and Aramberri Double-K

B-SCAN

• Capture both still images and video clips with frame-by-frame review
• On-probe activation and capture of scans
• 12 MHz focused transducer probe, sealed with virtually no sound
• Near-, mid-, and far-gain and TVG controls
• Live B-scan display with simultaneous selectable A-scan vector
• On-screen annotation capabilities, including measurements
• Continuous zoom and controlled image pan

PORTABILITY.

Just pack and go. Bothe the Master-Vu A-Scan and B-Scan come with compact carrying cases for easy transport and license to install software on mutiple computers.

A-SCAN. B-SCAN.

Or Both.
