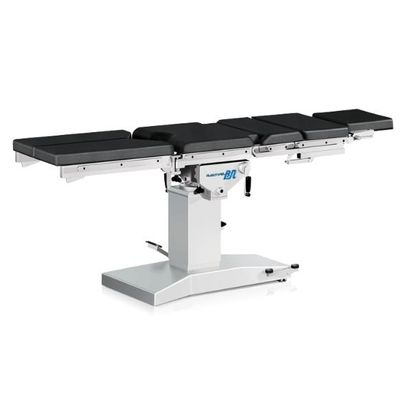

Nuova - Model F4 F6 Series - Mechanic Al Operating Tables
Technology, functionality, accuracy, stability and safety are the main characteristics of the F4 and F6 series. Born from the forty year experience of Nuova BN, the series F4 and F6 gives to the users a large opportunity of choice in a wide range of operating tables that can be used for traditional and specific surgery. The operating tables frame (completely in stainless steel) together with an innovative design put the table at the highest level in their class. Four available bases has been projected with the purpose of giving to the operating room an innovative and compact design. The modular table tops can be composed by different number of sections, accordingly to the surgical needs, they can support safely more than 250 kgs.
- Frame wholly in stainless steel with reflection proof treatment
- Hydraulic up/down adjustment
- Table top divided into removable and modular sections
- Column basement available in four different models
- Table top mechanical or crank adjustments
- Easy removal of head and leg rest, different types available
- X-rays holder under back and seat rest
- Radiolucency of 400 mm width and on the whole length of the top
- Accessories holder 25x10 on the whole table top length
- Removable, antistatic and decubitus free, pads
F4-HC is the radio-surgical operating table for advanced mobile field structures, designed in collaboration with the Intervention Surgery Group of the Civil Protection of Pisa. Designed to provide safety, functionality and rapid assembly in emergency interventions, even in the case of particularly complex surgical operations.
Easily transportable, in its boxes, on means of Civil Protection such as airplanes, helicopters, emergency vehicles, etc. it can be displaced in areas affected by natural events, in risky military zones and in places that are geographically not easily accessibles.
The F series stands out for its simplicity, precision and stability. Features that are even better highlighted in the use on civil and military ships thanks to the specific configuration created for these uses.
One of the main characteristics that distinguishes this operating table for ships, is its base specifically designed to reduce the overall dimensions to a minimum, always guaranteeing maximum stability.
The base of the column can be fixed directly to the ground or (optionally) equipped with specific rails, in turn anchored to the floor on which the entire operating table can slide. Furthermore, the possibility of having a 360 ° table rotation allows to find the best operating position even in small spaces.
Technical data
- Length: 2000 mm
- Width: 500 mm
- Pads thickness: 30 / 50 / 80 mm
- Load capacity: 250 kg
- Up / down: hydraulic
- Trendel / Reverse Trende: crank system
- Lateral tilt: crank system
- Back section: gas spring (F4 / F4-HC)
- crack system(F4-L)
- Thorax section: crank system
- Leg section: manual
- Head section: manual
- Longitudinal sliding: manual
Positioning : F4-EC: F4: F6-L
- MAX Height: 1050 mm: 1050 mm: 1050 mm
- MIN Height: 750 mm: 750 mm: 750 mm
- Height adjustment: 300 mm: 300 mm: 300 mm
- Trendeleburg: 35°: 35°: 35°
- Reverse Trendeleburg: 35°: 35°: 35°
- Lateral tilt right / left: 20° / 25°: 20° / 25°: 20° / 25°
- Back section: +75° / -45°: +75° / -45°: +75° / -35°
- Leg section: +20 / -90°: +20 / -90°: +20 / -90°
- Leg spread: 0° / 180°: 0°: 0° / 180°
- Head section: +80° / -90°: +80° / -90°: +50° / -85°
- Thorax section: -: -: 170 mm
- Longitudinal table top sliding on demand: 300 mm: 300 mm: 300 mm
