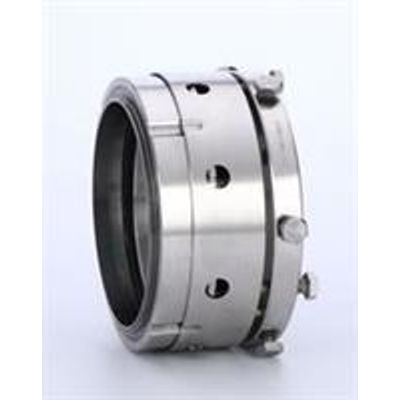

Anhui - Model YL 204B - Mechanical Seal for Top Driven Vertical Type Agitation Equipment

Structural Features: single end, multi springs, balanced, independent direction of rotation. The multi spring structure assures that the load on sealing faces are balanced. The springs are all adjustable and have long life-time. This component has a simple structure and high reliability.

Industrial Standards: HG5-754-78

Scopes of Application: mainly used in top driven vertical type agitation equipment, as well as devices that do not have strict requirements for leakproofness, such as fermentation tanks, seeding tanks, stainless steel reaction kettles and sewage treatment devices.

Operation Parameters:

• Pressure: - 0.1 ~ 0.6 MPa or less
• Temperature: - 40 ~ 180 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
• Linear Speed: 2 m/s or less

Materials:

• Rotary Ring Face: Carbon/SiC/TC
• Stationary Ring Face: SiC/TC
• Elastomers: Viton/PTFE
• Springs: SS304/SS316
• Metal Parts: SS304/SS316

Mediums: oil, acid. alkali, and polymer suspensions.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

• Structure: Single End
• Pressure: Low Pressure Mechanical Seals
• Speed: General Speed Mechanical Seal
• Temperature: Temperature Mechanical Seal
• Performance: Corrosion
• Standard: HG5-754-78
• Model NO.: 204B
• Balance: Unbalanced
• Specification: Inner Diameter: 30 mm to 180 mm
