Bmseed

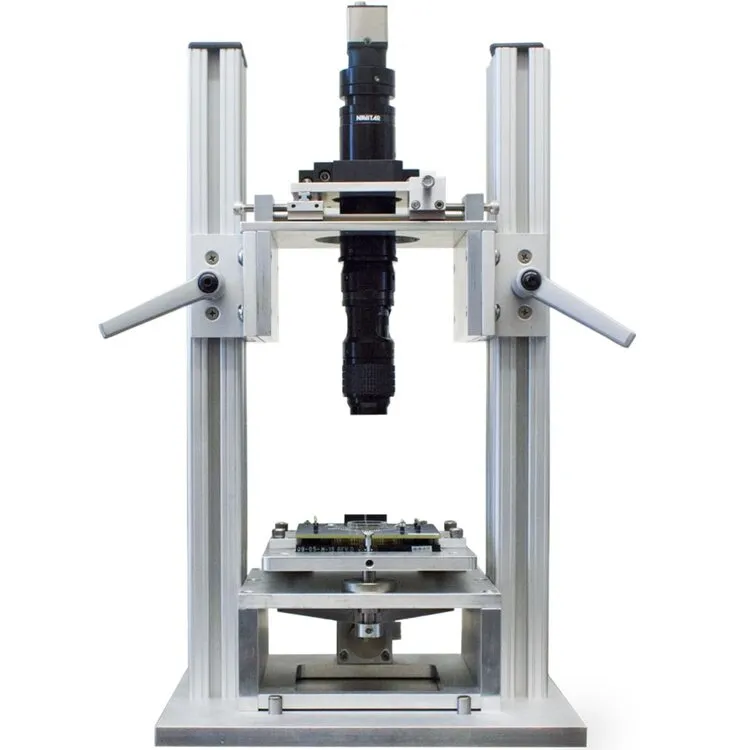

Bmseed - Model MEASSuRE-Mini - Micro Electrode Array Stretching Stimulating und Recording Equipment
FromBmseed
Mechanics Module: strain rate up to 1/s, strain up to 20%. Imaging Module: frame rate: 150fps. Electrophysiology Module: 2x60 channels. Physiological stretch of cells to reproduce the environment of cells inside the body; assessment of cell health, function, and maturity using electrophysiological measurements; visualization of cells and cellular processes during stretch.
Most popular related searches
preclinical drug development
organ-on-a-chip
clinical drug development
preclinical drug
medical cellulose
electrophysiology monitoring
tissue engineering
electrode array
drug development
regenerative medicine
- Tissue engineering, regenerative medicine
- Organ-on-a-Chip, pre-clinical drug development
- Mechanobiology
MEASSuRE is a complete solution for researchers to stretch cells/tissue mechanically, image them optically, and record/stimulate electrophysiological activity, separately or concurrently.
Cell Stretching
- radial, uniaxial
- custom strain fields
- one fast impulse stretch or cyclical stretch
- up to 50% strain
- at strain rates of up to 80/s
- any stretch pattern
- high reproducibility
Imaging
- before, during and after stretching
- up to 2,000 frames per second at 2MP resolution
- custom, easy-to-use software to independently measure the tissue strain
Electrophysiology
- electrodes stretch with the cells/tissue
- recording/stimulation before, during, and after stretching
- comparison of pre and post stretch electrophysiological activity (normalization)
- soft microelectrode arrays (MEAs) on elastomeric silicone substrates
- standard microelectrode arrays (MEAs) on rigid substrates available
