FISBA
Micro Imaging Systems
FromFISBA
We produce imaging systems in compact form with high resolution. We fulfill the procedural and technical requirements to be able to meet the specific needs of a micro-camera system in the optimal way.
Most popular related searches
micro imaging system
medical imaging
endoscopy imaging
medical endoscopy
endoscopy
medication application

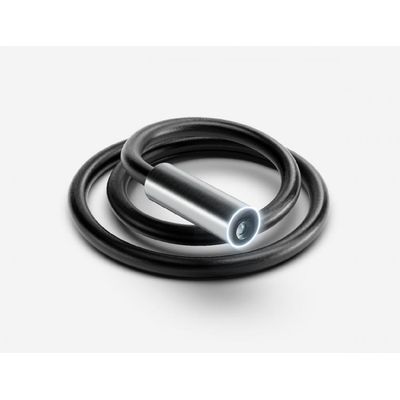

Example specifications for a FISBA micro-camera:
| Diameter without illumination: | 1,6 mm |
| Diameter with illumination: | 1,95 mm |
| Length without illumination: | ≤ 4 mm |
| Length with illumination: | ≤ 6 mm |
| Field of view (diagonal): | 120° |
| Working distance: | 5 – 50 mm |
| Resolution: | 400 x 400 px |
| F-number: | 6 |
| Wavelength: | 400 – 700 nm |
| Illumination concept: | Integrated LED lighting adjustable with separate control box |
Our process begins with the idea, which we elaborate in an initial design study. We then develop prototypes for the desired production stage through to series production. What never ends is our customer service: Even once the product is successfully up and running, we are there for you at any time.
Example applications
- Endoscopy
- Medical Imaging
- Augmented Reality
From single components to complex assemblies
We are your partner for imaging and illumination solutions for Life Sciences Applications.
