Nuubo - Mid/Long Term ECG Monitoring System
Nuubo offers a mid/long-term ECG monitoring system. Simple, complete and efficient. The textile electrode technology developed by Nuubo greatly simplifies the complicated traditional methods of connecting electrodes, reducing them to the simple act of wearing a vest. The elastic tissue adapts to the patients’ movements, so they can easily perform all daily physical activities without being limited by cables and without having to rely on specialized medical staff. These characteristics, together with the context information which refers to the physical activity and position/posture of the patient, allows the development of a new range of solutions and utilities. As a result, prevention can be improved through diagnosis and rehabilitation by means of easier and closer monitoring.
- Wearable for up to 30 days
- Excellent aECG signal quality
- Excellent Patient compliance
- 3 Adult sizes
- Washable
- Flexible, elastic and stretchable
- conductive tracks
- Elastic fabric in both axes
- Up to 30 days continuous recording
- 2 ECG Leads
- 3-axis ACC
- 5 days autonomy battery and rechargeable
- Interface: – LEDs and buzzer
- indicators – Button: event
- Bluetooth low energy transmission to
- assess signal
- 30 days of QRS analysis performed as
- a single session
- Intuitive user interface
- Automatic noise-detecting algorithm
- Beat classification in groups
- AF detection algorithm
- Event detection algorithms
- Multiple day reporting

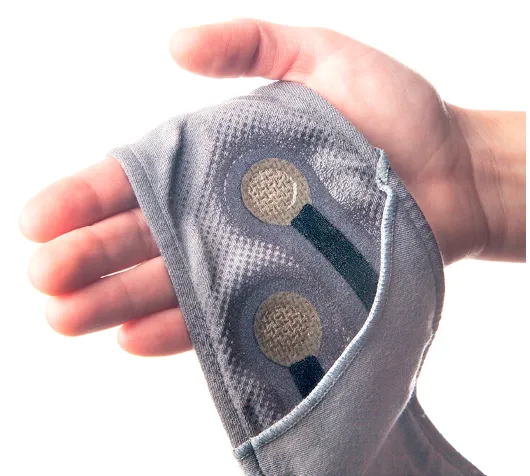

The Nuubo textile electrode has been designed to obtain the best ECG signal quality while achieving best-in-class patient comfort
Silver textile-electrode composite + ECG cream
- Avoid skin allergies
- Optimal electrode performance quality
Flexible and stretchable conductive tracks
- Patient comfort during daily activities
- Electrode location flexibility
Seamless fabrics with two elastic axes
- High-quality and comfortable fabric without adhesives
Nuubo provides a single report for the 30 days monitoring. The report includes:
- The patient details and test results are included in the first page
- The second section presents the patient symptoms.
- The third section shows the arrhythmia events divided in categories: Atrial Fibrillation, Tachycardia, Bradycardia and others.
- The forth section includes the test trends and other ECG strips like maximum heart rate.
