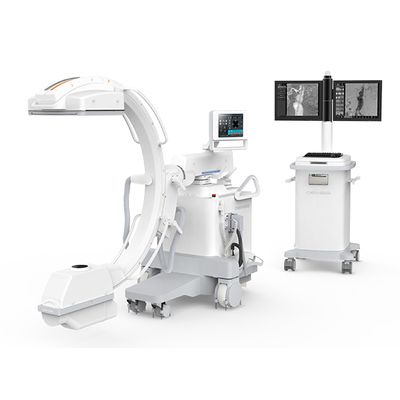

GEMSS - Model SPINEL 12HD - Mobile C-Arm Fluoroscopy System

Developed with FPD, SPINEL 12HD, it provides clear high-resolution images with no distortion. Acquiring of such a clear X-ray image will help improving image interpretation.

1. True Digital Image
It is a digital surgery-exclusive see-through contrast device with dynamic flat panel detector. With its large-ranged FPD, it is possible to exposure a wide area 15.3`, and you can obtain high-definition images with no distortion.

2. Optimized X-ray Configuration
Users can obtain high-resolution images with a high-frequency generator. Besides, its rotating anode tube has the best durability and will help implement much more detailed images by using large and small focal spot.

3. ABC, Metal Detection
It displays the optimal quality of images during surgery with various functions such as ABC.Metal Detection by checking the object with an appropriate brightness and consistent quality.

4. ANGIO PACKAGE
The SPINEL 12HD next generation mobile C-arm further improves performance with the GEMSS Angio Package that includes DSA, Road map, Re-Mask, Pixel-Shift, Max Peak and Opacification, and Bone Land marking and provides true versatility for the hybrid OR

Through its (ergonomic) design focusing on users` needs and convenience, this software will maximize the efficiency of surgery environments.

1. Wider operating Range
(Movement)Its orbital (165 degrees) wider than the existing device and its wider movement will make it possible to carry out a smooth surgery without changing the location of a detector and a tube.

2. Compact Design
Its sophisticated compact design enhances the spatial availability and aesthetics, and with the center of gravity and height improved, a user can move and operate equipment more easily and conveniently.

3. Steering and Braking-combined Handle
You can conveniently operate C-arm during the process of surgery with Steering and Braking-combined Handle

4. Detachable Grid
A detachable grid is provided to increase image quality and decrease dose, when not in use, it is stored in the customized bracket.

It provides user-centered functions reflecting users` needs, and its interface provides convenient diagnostic environments.

1. Control Panel
Likely to rotate at 270 degrees, the control panel (OP) is made for a user to operate equipment smoothly. Moreover, its touch screen 10.4" in width helps a user recognize images easily, further improving the operability, and the quick navigation Ul system is designed so sophisticatedly and intuitively so that it will improve users` convenience.

2. Foot Switch
The programmable multifunction foot switch allows the user to select the three most commonly used functions for each procedure from the fifteen available functions and DSA & Roadmap on/off.

3. Monitor Cart
Cart with simple and compact designs can be efficiently used in a confined space, and its two 19" LCD monitors can move upward and downward enhancing users` convenience.

4. Third Monitor
Designed to interoperate with a third monitor, it is possible to implement a large screen display of live images for educational/reference purposes. It can be also used as an input for a surgery navigation system.

5. CXView3
Our proprietary CXView3 software features a user-friendly interface and improves workflow efficiency. Register patients easily with functions such as Merge, Match and Split. Transfer images between two servers or more. Exporting images with variety of formats is possible. All functions are fully DICOM 3 compatible and integrated seamlessly with PACS.

1. Dose Management
Such kind of its functions as Dose report, Low Dose Mode, Pulse yh & % Mode, Multi Leaf Collimator & Virtual Collimator and two-way Laser Guide will reduce unnecessary radiation-exposed dose for both users and patients.
