Pyrotech - Mobile Pyro Flash Plants
Mobile PyroFlash plants are standard equipped with a dosing silo on top of the installation. The biochar is removed from the reactor with a screw conveyor, the liquid products are pumped. The syngas can be sent to flare for thermal use or used as a gaseous bio-fuel connected to a gas generator for electricity production.
Typical Yields
- For feedstock with 15% moisture content the yields are typical:
- Product w% of feed
- Biochar 10
- Wet Oil 5
- Dry oil 20
- Wood Vinegar 25
- Syngas 40
Trailer mounted or 20ft container =LxWxH 6×2,4×2,6m; 40ft container =LxWxH 12×2,4×2,6m
To the unit, a top silo needs to be added which increases the height with 1 extra meter.
The syngas is typically sent to the flare for thermal applications or connect to a generator for electricity production or can directly be used to dry the biomass. The drying unit is outside the scope of the installation.
- The reactor design combines high yields with high capacity
- This design can handle a wide variety of biomass qualities
- In addition, the reactor can be started and shut down in minutes
- It’s a highly automated continuous process
- There are no waste streams
- No use of any catalytic converters

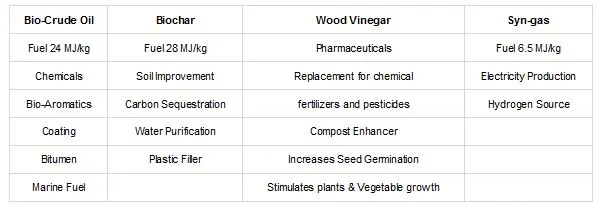

- Simultaneous production of,
- Bio-crude oil with a HHV of 24 Mj/kg
- Biochar
- Wood vinegar (8% Acetic Acid Concertation)
- Syngas
For other biomass and moisture contents yields will be different
Dimensions
Pyrotech Energy offers mobile units that can be taken to the source of the biomass. We offer two capacity ranges:
