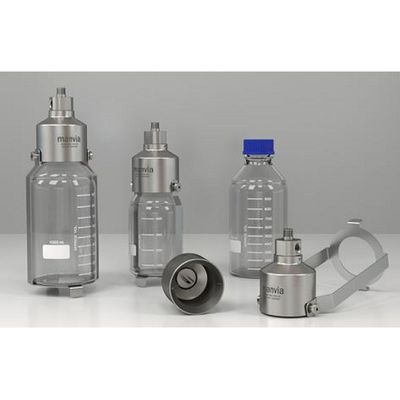

Manvia - Model NGL - Needle System Adapter
NGL systems are used to take a liquid process sample without spillage. Adapted to standard GL45 bottles with septum cap in differente sizes. The needles system ensures the sealing between the process / vent and the sample bottle through the septum.
Most popular related searches
- No emissions
- Safety for the operator
- Environmental care
- Easy operation and low maintenance
- Seal during f lling of the bottle preventing gas or liquid leaks.
- Needles Assembly to sample and vent
- For standard GL-45 bottles with septum.
- Material Body: SS316L (Others under request)
- Sample Connection: 1/4"NPT(m)
- Vent connection:1/4" NPT(0
- Bottle neck size : 204 °C @ 78 barg (400°F@1130 psig)
- Sample needle (ID): 1,40 mm / 2,00 mm / 3.00 mm
- Vent needle (ID): 1,40 mm
- Compatible bottle:
- Neck Size GL45
- 250 ml/500 ml/1000ml
