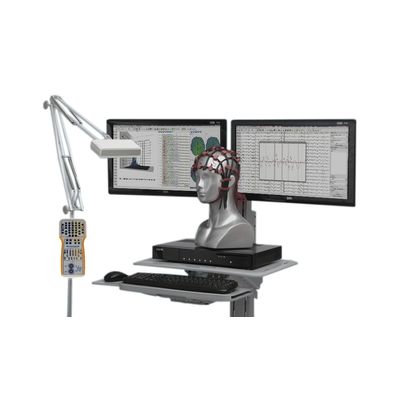

Neurocor - Neuropolygraph EEG Machine

The system is designed for the extensive study of the recordings of the brain electric potentials, bioelectric signals in outpatient and in-patient facilities and is suitable for daily monitoring. It meets the requirements of Eurostandards for epilepsy care approved by the International League Against Epilepsy and provides the following:

• Surface EEG study;
• EEG Video Monitoring;
• EEG Daily Autonomous Monitoring;
• Conducting of Polysomnographic Examination;
• Using of Provocative Procedures;
• Recording and Analysis of Potentials.

The system is ergonomic, compact, adapted for mobile application, equipped with a built-in multifunctional LCD display, it has capabilities for data transfer via Bluetooth and USB interfaces. The tp of the range bioelectrical amplifier provides high quality recording of EEG signals. The system can operate with or without mains power or being connected to a PC as it has both built-in batteries and data storage within its built-in memory unit. The combination of the unique functions and parameters of this system allow it to be used for all tasks relating to the recording and study of the brain electric potentials.

This advanced software, which works on Windows and Linux OS, is supplied with the system. The basic software package makes it possible to perform the following: adaptive filtering of signals, editing and re-editing of recording, amplitude, spectral, bi-spectral, coherent and wavelet analysis, showing results in the form of charts, trend lines, tables, histograms and mapping, forming computer-assisted conclusion on the study results, storing study results in the patient database, exporting to standard file formats of analysis and EEG review.

Number of EEG channels: 22-32
EEG recording scheme: monopolar, vertex, bipolar
Stimulation: photo, audio, pattern
Sampling frequency: Up to 8,000 Hz
EEG channel noises: max. 0.3 mkV RMS
Number of bipolar channels: 2-8
Connection of additional sensors: ECG,EMG, EOG, breathing, snoring, tremor
PC connection: USB, Bluetooth
Power supply: USB, built-in batteries
Autonomous recording mode: Up to 48h
