Breas Medical AB

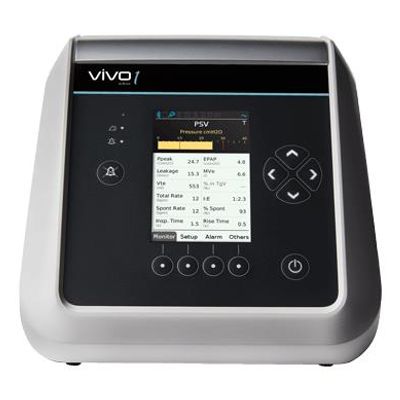

Vivo - Model 1 - New Generation Ventilator
FromBreas Medical AB
The Vivo 1 is a new generation ventilator designed for personalized and comfortable non-invasive respiratory support for non-dependent patients with chronic breathing insufficiency.
Most popular related searches
breath rate
nurse calling
patient circuit
respiratory support
remote monitoring software
patient breathing
pediatry
heated humidifier
The intuitive interface ensures ease of use. A comprehensive set of modes and extensive monitoring capabilities allow for great flexibility, making the ventilator a perfect choice for a variety of patients.
COMPACT
- One Platform-Three Models
- Lightweight and Compact
- Integrated Humidifier with heated wire circuit
ADAPTABLE
- Wide range of Modes
- Adult and paediatric (>10kg)
- Intuitive Interface
- Extensive therapy data
- Suitable for use in hospital and home
- Closer monitoring with Breas accessory box
CONNECTED
Making Connected Care more insightful
- EveryWare – Secure cloud-based remote monitoring*
- PC Software – Desktop-based with Live Viewer
Settings / Performance
- Ventilation Modes : S, ST, PSV, CPAP
- Adult/Peadiatric : >10kg
- IPAP : 4 – 25 cmH2O
- EPAP : 2 – 20 cm H2O
- Breath Rate/Back-up Rate : 0-40 bpm
- Inspiratory Time : 0.3 – 5 s
- Rise Time : 1 – 9
- Inspiratory Trigger : 1 – 9
- Expiratory Trigger : 1 – 9
- Minimum Inspiratory Time : Off, 0.3 – 3 s
- Maximum Inspiratory Time : Off 0.3 – 3 s
- Ramp (Up/Down) : Off 10-60mins
- Target Volume : 100 – 1500 ml
- Auto-EPAP : On/Off, Pressure Limit: Max EPAP +2 cmH2O –25 cmH2O, PS 2-23c, Min/Max EPAP: 2 – 20 cmH2O, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 2-12mins/Off
- Humidifier Level : 1-5
- Heated Circuit : Off, 1-5
- Patient Circuit : 15mm, 22mm
- O2 Bleed in (Device) : 0-30L/min
- Displayed data : Ppeak, EPAP, Leakage, MV, Vte % in TgV, Total Rate I:E, Spont Rate, % spont, Inspiratory time, Rise time, SpO2, Pulse, Rate
- Power Supplies
- Mains supply : 100 to 240 V AC
- External DC : 24 V
- Alarms
- Alarms : High Pressure, Low Pressure, High Breath Rate, Low Breath Rate High MV, Low MV, Rebreathing Apnea, Disconnection, High SpO2, Low SpO2, High Pulse Rate, Low Pulse Rate, Power Failure
- Dimensions : W x H x D 166 x 185 x 200 mm
- Weight : 1.6kg
- Noise level (at 10 cmH2O constant pressure) : Less than 28 dB(A)
- Connectivity and Software : Built-in connectivity USB
- Compatible Software : PC Software and is prepared for EveryWare Remote Monitoring*
- Plug-and-Play accessories : SpO2, Nurse Call, Remote Alarm, Accessories Box
- Other
- Humidification : Integrable water chamber
- Circuits : Cleanable & Disposable leakage circuits with/without heated wires
- Confirm Stop : On, Off
- Compliance Data (on Screen) : Min Daily Usage Off, 1-24hrs, Total Usage Hours, Total Days, Days with Usage, Average Usage, Days Compliant, AHI
