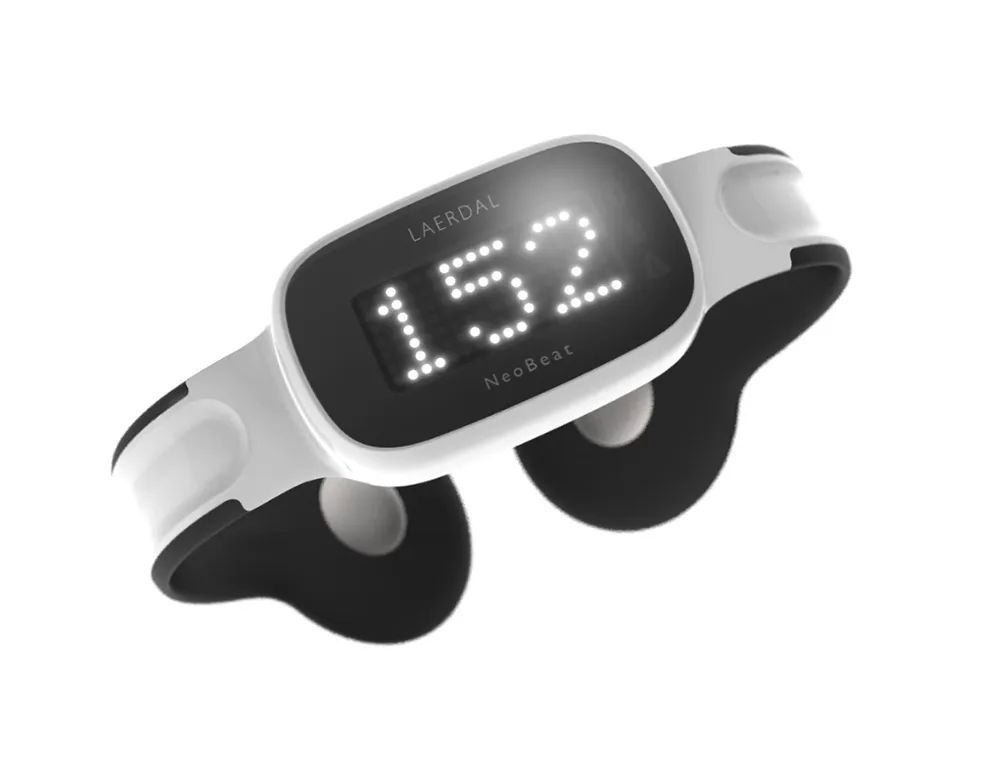

Laerdal - Model Neobeat - Newborn Heart Rate Meter
NeoBeat is an easy-to-use heart rate meter that guides healthcare workers during newborn resuscitation. It quickly provides objective feedback on the newborn’s condition through accurate and continuous heart rate information. NeoBeat supports decision-making during care and provides feedback that improves the confidence and efficacy of provider intervention.
Newborn heart rate, instantly
Get timely heart rate information that can guide and improve care. NeoBeat is faster and more accurate than other available methods like stethoscopes, pulse oximetry or umbilical cord palpation.
Decision-making based on objective feedback
NeoBeat uses dry electrodes to pick up an ECG-based signal. This is the most reliable way to measure newborn heart rate, recommended by The International Liaison Committee on Resuscitation (ILCOR) 2015 guidelines.
Confident health workers
The fast and continuous detection of heart rate helps health workers perform timely newborn resuscitation, including high-quality, continuous ventilation within the Golden Minute. It can also help reduce misclassification of stillbirths.
- Reusable and consumable-free.
- Dry electrodes to pick up an ECG-based signal, as recommended by ILCOR.
- Mountable charging stand for quick and easy access to the device.
- Bright, digital display that informs a single provider or a larger team on the newborn’s heart rate.
- Can be placed on the back of the baby to enable skin-to-skin while retrieving heart rate information.
- Product size (L x W x H) [cm]: 8,3 x 8,7 x 4,0
- Product weight (kg): 0,031
- Operating temperature [°C]: 0 to +40
- Storage temperature [°C]: -40 to +70
- Materials: Polyamide, TPU
- Material Free: Latex, Lead
- CE or Notified Body Number: CE2460
- Product conformity with standards: IEC 60601-1, ISO 10993
- Battery:
- Lithium battery energy content [Wh]: 0,44
- Lithium Battery Weight: 3.2g
- Are Batteries Required? Yes (rechargeable, embedded in product)
- Number of Lithium-ion cells? 1
- Reprocessing methods:
- Wipe all surfaces of NeoBeat with a clean cloth soaked with 70% ethanol. Spray 70% ethanol on all surfaces of NeoBeat. Ensure it remains wet for a minimum of 10 minutes.
- Repeat spraying as necessary to account for evaporation.
- Allow to air dry
- User Guide
- Charging stand and cable
- Wall bracket
- USB Charger”
