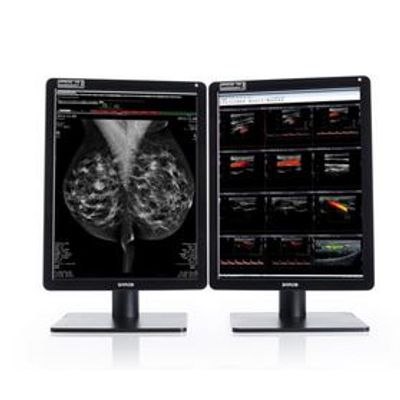

Barco - Model 5MP (MDNC-6121) - Nio Color Mammography Display
Nio Color 5MP offers super bright, color calibrated and the most detailed medical images, including mammography and breast tomosynthesis. It`s how we help you improve your workflow and make more confident diagnoses.
5.8 MP high-bright color display
- Designed for radiology and mammography
- High-bright, steady colors and grays
- Front sensor and QAWeb Enterprise for always-on compliance
Barco`s Nio Color 5MP renders excellent color and grayscale images used in general radiology as well 2D and 3D mammography. Its high brightness and high contrast ratio help you discern the most subtle image details for an accurate diagnosis. And the additional resolution allows you to fit more of the image on the screen for reduced panning and zooming.
Using Barco’s integrated front sensor, the Nio Color 5MP works perfectly together with Barco’s QAWeb Enterprise solution for automated Quality Assurance and calibration. QAWeb Enterprise guarantees stable DICOM grayscale images and, with SteadyColor, consistent calibrated color images throughout the display`s lifetime.
Work smarterWith the integrated smart features, you can easily take control and improve your productivity. SpotView™, for example, allows you to focus on an area of interest to unveil even more details. And with DimView™, auxiliary displays can be dimmed automatically so they don`t interfere with your reading experience.
The Nio Color 5MP is an excellent solution for radiologists who want to angle their desktop: it lets you choose your preferred viewing angle and offers a highly ergonomic display configuration. It’s also possible to switch between Clearbase and Bluebase viewing modes on-the-fly. Whether to suit the image type or to change reading preferences, you decide which color you want, and when.
Ultimate peace of mindThanks to the high-performance LED backlights, the Nio Color 5MP has a positive impact on both maintenance and operational costs. The display is equipped with an integrated glass cover to safeguard your investment.
Barco is the only company that provides complete system solutions, from display and controllers to workflow tools and calibration via QAWeb. All components are covered by our full 5-year warranty. At product release, we extensively test our displays` compatibility with all major PACS applications.
Your business is our priority, which is why Barco`s services program is designed to drive positive business outcomes together.
Our mission is to enable the brightest and most reliable outcomes for you and your customers through
- a first-time right experience.
- ultimate peace-of-mind.
- maximum efficiency and ROI
- additional service revenues
- Screen technology LCD
- Active screen size (diagonal) 541 mm (21.3")
- Active screen size (H x V) 324.45 x 432.6 mm (12.77" x 17")
- Aspect ratio (H:V) 3:4 for each display in portrait mode, 3:2 overall
- Resolution 5.8 MP (2100 x 2800 pixels)
- Pixel pitch 0.1545 mm
- Color imaging Yes
- Gray imaging Yes
- Bit depth 30 bit
- Viewing angle (H, V) 178°
- Uniformity correction ULT
- SteadyColor Calibration Yes, when used as system with MXRT display controller
- SteadyGray Yes
- Ambient Light Compensation (ALC) Yes
- Front sensor Yes
- Maximum luminance 1300 cd/m²
- DICOM calibrated luminance 600 cd/m²
- Contrast ratio (panel typical) 1400:1
- Response time ((Tr + Tf)/2) (typical) 12.5 ms
- Housing color RAL 9003 / RAL 9004
- Video input signals DVI-D Dual Link (2x)
- DisplayPort (2x)
- USB ports 1x USB 2.0 upstream (endpoint)
- 2x USB 2.0 downstream
- Power rating 24 VDC, 5 A; 5 VDC, 0.1 A
- Power requirements This device shall only be powered by the following medical approved power supplies:
- Adapter Technology, type CMD160-P240
- Ratings marked on the medical power supply:
- Input rating: 100–240 VAC, 1.9–0.8 A, 50/60 HZ
- Output rating: 24 VDC, 6.3 A; 5 VDC, 0.5 A
- Efore (Roal Electronics), type RHPS390A
- Ratings marked on the medical power supply:
- Input rating: 100–240 VAC, 3.0 A, 50/60 HZ
- Output rating: 24 VDC, 8.33 A; 5 VDC, 0.1 A
- Power consumption 60 W (nominal)
- < 0.5 W (standby)
- Dimensions with stand (W x H x D) Portrait: 378 x 528~628 x 235 mm
- Landscape: 491 x 472~572 x 235 mm
- Dimensions w/o stand (W x H x D) Portrait: 378 x 491 x 84 mm
- Landscape: 491 x 378 x 84 mm
- Dimensions packaged (W x H x D) 500 x 280 x 670 mm
- Net weight with stand With protective cover: 11.6 kg
- Without protective cover: 10.2 kg
- Net weight w/o stand With protective cover: 6.6 kg
- Without protective cover: 5.2 kg
- Net weight packaged With protective cover: 17.0 kg (without optional accessories)
- Without protective cover: 15.7 kg (without optional accessories)
- Tilt -10° to +30°
- Swivel -45° to +45°
- Pivot 90°
- Height adjustment range 100 mm
- Mounting standard VESA (100 mm)
- Screen protection Protective, anti-reflective glass cover (optional)
- Recommended modalities All digital images, including digital mammography
