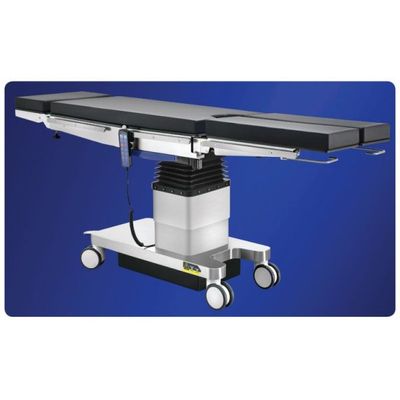

GUBBEMED - Model SYLT - Operating Table
The SYLT operating table is perfectly suitable for the safe and comfortable positioning of the patient in all surgical disciplines, such as General Surgery, Cardio-Vascular Surgery, Gynecology and Urology, as well as Orthopedics and Neuro-Surgery, together with the corresponding accessories. All movements of the operating table and accessories are designed not only for the comfort of the patient, but also for an easy setup and stress less handling by the user.
The SYLT operating table is equipped with the latest precision-electro-mechanical system – Made in Germany, combined with an intelligent electronic control platform that allows the user a safe handling of the patient.
The SYLT operating table comes with a cable connected hand control.
The main construction of the SYLT operating table consists of the highest quality – medical grade stainless steel.
The SYLT operating table is especially designed for all requirements in any special discipline, such as Urology and Gynecology. An Orthopedic extension device and a 3-segments shoulder plate can turn the SYLT operating table into a high sophisticated Trauma / Orthopedic table. A large range of operating table accessories will guarantee the best suitable setup for any patient positioning and operation.
The height adjustment, tilting left / right, Trendelenburg function and the back plate of the SYLT operating table are electro-mechanically controlled. The leg plates and head rest can be manually adjusted and are supported by gas springs. The body elevator can be mechanically adjusted.
The SYLT operating table is available with soft multilayer SFC anti-decubitus mattresses.
- Table length 2080 mm ± 100mm
- Table top width, with side rail 570 mm ± 50mm
- Thickness of SFC mattress 60mm
- Height adjustment 700mm to 1050mm (without pads)
- Trendelenburg 30° / ± 2°
- Reverse Trendelenburg position 30° / ± 2°
- Back plate adjustment 75° up / 20° down / ± 2°
- Body-/Kidney elevator adjustment ≥ 110 mm
- Head rest adjustment + 45° to - 50° / ± 2°
- Leg plate adjustment ≥ 90° down
- Leg plate abduction 180°
- Lateral tilt – left/right 20° / ± 2°
- Battery power supply 24 V/DC
- Charging power /mains supply - adjustable 110-240V, ~50/60Hz
- Patient weight capacity ≥ 140kg dynamic / 280kg static
- Tolerance ±10%; technical specifications subject to change
