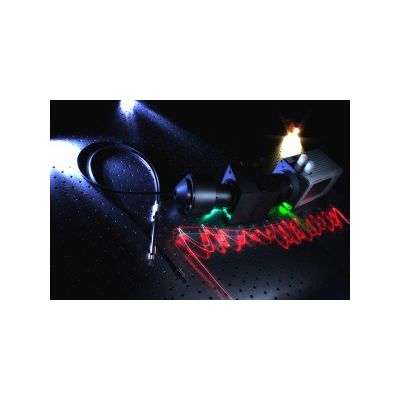

PPO - Optical Coherence Tomography Spectrometer (OCT)
FromP&P Optica Inc.
The PPO Optical Coherence Tomography (OCT) spectrometer allows you to obtain world-class OCT image quality without the setup costs, time-consuming adjustments and stability issues associated with an in-lab built spectrometer. You decide which light source and camera to use and we will ensure you get the highest performance customized spectrometer for your application.
Most popular related searches
P&P Optica Optical Coherence Tomography (OCT) spectrometer
- Spectral bandwidth : Both Si and InGaAs detector ranges available, anywhere between 250 nm -2500 nm, matched to the broadband source selected
- Centre wavelength (nm) : Source dependant (ex: 840 nm, 1060nm, 1310 nm).
- Dispersion (nm/pixel) : < 0.04
- Absolute diffraction grating efficiency : Peak; >95%, average 70-90% ; dependant on bandwidth
- Entrance slit : Optional slits available to increase spectral resolution
- Shutter : Optional
- Weight [kg] : < 3
- High signal-to-noise ratio (SNR) for ultra-fast OCT image acquisition speeds
- Uniform spot size across the entire detector array minimizes SNR fall-off
- Modular design for multiple different OCT applications
