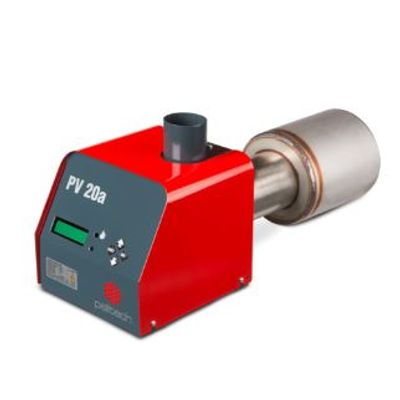

Pelltech - Model PV 20 - Pellet Burner
FromPelltech OÜ
Pelltech Domestic range burners are designed to heat small and medium-sized residential and public buildings. Replacing an old oil or gas burner with a more sustainable Pelltech pellet burner is effortless and quick, thanks to their compatibility with most of the existing heating systems. PV20 and PV30 are easy to use due to their unique electrical ignition, automatic power level selection and informative display. With its excellent burning quality, high efficiency and multiple safety features, Pelltech burners comply with all European standards. The PV 20b and PV 30b have pneumatic cleaning system, which significantly prolongs the work period between cleanings – instead of once a week, the burner needs cleaning only once every two months.
Most popular related searches
pellet burner
burner
standby power
gas boiler
gas burner
boiler furnace
power optimization
burner cleaning
furnace
burner system
- Capacity up to 20 kW
- Certified according to EN 15270:2008
- Easy to maintain
- Pneumatic cleaning option
- Long life span (all parts easily replaceable)
- Optional internet module
- Compatible with different heating appliances
- Capacity kW 6 - 20
- Fuel Premium pellets 6...8mm
- Maximum fuel consumption kg/h 4.2
- Power at hold flame status kW 2.5
- Minimum boiler furnance diameter mm ≥ 370
- Minimum boiler furnace lenght required mm 400
- Input power 230V, 3A
- Standby power consumption W 3
- Power consumption during burning W 25 - 40
- Power consumption at ignition W 500
- Lambda 1.3 - 1.6
- CO concentration ppm < 100
- Maximum flue gas amount (at 150C) m3/h 75
- Optimal O2 concentration % 8...10
- Required chimney diameter mm ≥ 100
- Optimal furnace underpressure Pa -6
- Overall dimensions (LxWxH) mm 540x220x240
- Package dimensions (LxWxH) mm 590x270x250
- Burner weight (with package) kg 11.5 (14)
- Ash removal Manual
