Modulight - Model ML6000 Series - Plug-and-play Laser Modules
Whether it’s due to high volume or very specific application requirements, it often makes sense to tailor a laser for your application. We have provided lasers to satellite’s in orbit as well as various diagnostics applications and practically everything in between. Applications we’ve covered include medical, industrial, display & projection, and many more. Good basis for tailored laser can be a proven platform such as ML6500 for multimode or ML6600 for multi-wavelength laser. While originally developed for medical these intelligent laser modules have found their way to numerous applications from scientific instrumentation and medical diagnostics to industrial processes. Just plug-and-play to start using the laser system.
Multi-wavelength Laser light source – just plug-and-play

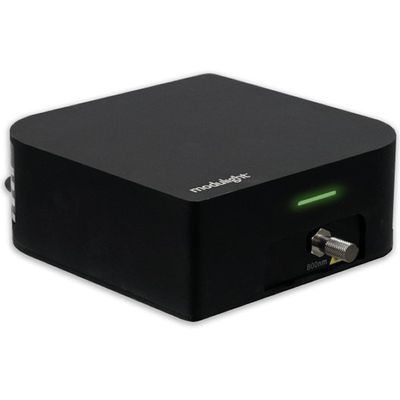

ML6600 is a small plug-and-play laser system for users that don’t have time or interest for all the complexity with drivers, cooling, power supplies, etc. Just unbox it, and take into use!
ML6600 can have up to 3 lasers of different wavelengths built-in, or simply just one wavelength. When ordering, you may request 1–3 wavelengths from the below tables, or ask Modulight sales team for more options from the wavelength range 400–2000 nm. The laser light output comes conveniently from a receptacle fiber with a standard SMA-905 connector.
ML6600 comes with a PC software with elegant graphic UI, or alternatively it can be directly controlled by analog and digital control signals. Therefore it’s also suitable for the needs of system integrators.
- Wavelengths: 400–2000 nm
- Power range: up to 26 W, depending on the wavelength
- 1 – 3 lasers built-in
- Laser output from a combined fiber with SMA-905 connector, or alternatively a separate output fiber for each channel
- Integrated control, cooling and driver
- Supports analog and digital control
- Easy attachment to cooling module
- Key switch, optional fiber interlock
- DC power input
- Anodized aluminum case
- PC user interface (USB) with easy and elegant controlling of each built-in laser
Modulight’s OEM laser systems are a perfect solution for integrating a laser into your system platform or application. Simple standard interfaces ensure low integration cost and easy use.
- illumination
- photodynamic therapy
- pharmaceutical research
- diagnostics
- fluorescence microscopy
- dentistry
- optical pumping
- display & projection
- measurement & analysis
