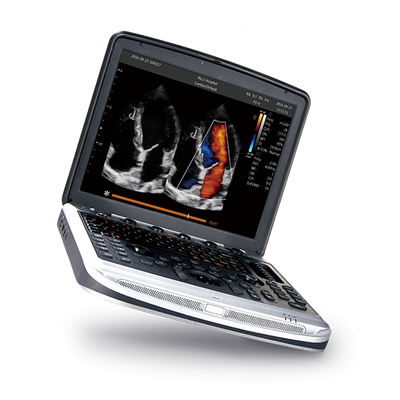

Rothband - Model SonoBook8 - Portable Colour Doppler System
The SonoBook8 is a compact colour Doppler system designed for diverse clinical applications including cardiovascular, radiology, anaesthesia, critical care, and emergency. It supports advanced technologies like Q-beam, Q-flow, Q-image, FHI, X-contrast, simplifying complex diagnostic processes. The device features instant response, innovative transducer technologies, and comprehensive cardiac measurement packages such as Stress Echo, Auto IMT, and Semi-automatic Simpson measurement. For radiology, it offers a versatile probe range (1.5 MHz-23 MHz) and real-time curved panoramic imaging. Anaesthesia applications benefit from superior needle visualization technology and multi-zoom functions. The system's portability, weighing less than 5.4kg, makes it suitable for critical care and emergency scenarios, offering excellent battery performance of up to 2 hours in active use and rapid boot times. Probe options include convex, linear, transvaginal, transrectal, micro-convex, phased array, pencil probes, and a single crystal button-probe, thus meeting a variety of clinical needs.
Cardiovascular
- Instant response.
- Innovative transducer technologies are used for extraordinary cardiac performance.
- Comprehensive cardiac measurement packages: Stress Echo, Auto IMT, Semi-automatic Simpson measurement, PISA, and etc.
- User-definable cardiac measurement workflow.
- Comprehensive range of probes for cardiac scanning: TEE, Pencil & Phased array.
Radiology
- Versatile probe range covering 1.5 MHz-23 MHz.
- Efficient workflow to meet different environment.
- Real-time curved panoramic imaging.
- Advanced technologies: Q-beam,
- Q-flow, Q-image, FHI, X-contrast.
- Extraordinary performance for easy diagnosis.
- Probes: Convex, Linear, Transvaginal, Transrectal, Micro-Convex, etc.
Anaesthesia
- Superior anesthesia performance.
- Super Needle visualize the needle better without degrading the image.
- 2D steer.
- Multi zoom function for tiny structures, full screen to enlarge the image area.
- Probe: 192 elements linear, 23MHz high frequency probe, Button-probe,Single crystal
Critical Care
- Truly portable design < 5.4kg.
- Fast and reliable performance.
- Dedicated process for ICU purpose.
- Triple probe connector and precision cart (Option).
- Instant response.
- Excellent battery life, up to 2 hours of continuous use in active mode, up to 1 week in standby mode.
- Probe: Phased array, Convex, Linear, Micro-Convex, Button-probe,Single crystal
Emergency
- Fast boot-up.
- Longer battery life up to 2 hours active mode, fast battery swap.
- Auto-ambient adjustment according to indoor and outdoor environment.
- Durable & Robust design for challenging environment.
- Probe: Phased array, Linear, TV,
- Button-probe,Single crystal
- Built-in FAST preset.
- Wifi-compatible.
