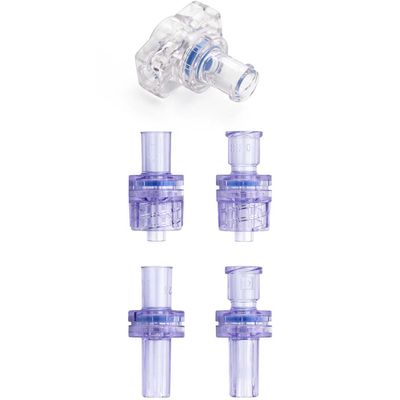

Pressure Activated Valves
The Pressure Activated Valve is used extensively as a "one-way" valve in critical drug delivery applications, and as an "anti-siphon" valve in pump applications. It targets patient applications requiring very specific performance characteristics such as high-pressure rating and narrow specification ranges for key attributes. The valve features a preloaded, normally closed silicone diaphragm that allows flow in one direction while checking flow in opposite direction and preventing retrograde flow. The valve`s clear housing facilitates visualization of the entire fluid path.
- Low priming volume allows for lower flush volumes and drug hold up
- 100% inline tested for backflow and weld leaks on automated assembly equipment providing high quality levels
- Operates in any orientation reducing sensitivity to set configurations
- No solvent residuals - ultrasonically welded providing excellent leak resistance
For flexibility with your application, these valves are available in a range of opening pressures and various inlet and outlet configurations.
TECHNICAL SPECIFICATIONS 1
-
Priming Volume: <0.30 ml
-
Flow Rate at 5 psi (0.34 bar): 370 ml/min
-
Pressure Rated: 45 psi to 350 psi
MATERIAL COMPATIBILITY
-
Blood
-
Gamma, E-beam and EtO Sterilization
MANUFACTURING
-
ISO 13485 Certified
-
FDA Registered
-
ISO Class 8 Cleanroom Manufacturing
ALL MATERIALS ARE:
-
ISO 10993 compliant
-
Not made with Natural Rubber Latex and PVC
COMMERCIAL AVAILABILITY
-
Bulk, non-sterile
