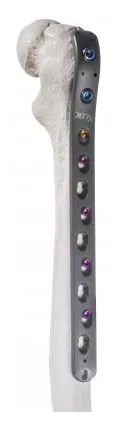

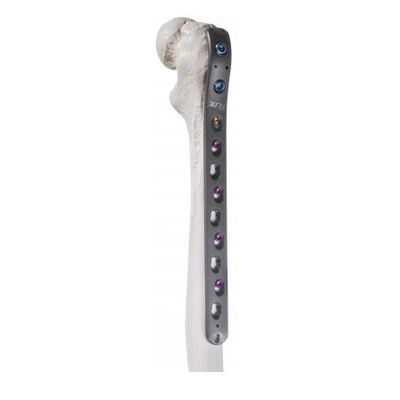

Femur XLOC - Proximal Plate

The femur XLOC plate proximal is an anatomically pre-formed plate and intended for fractures of the proximal femur and the trochanter part. The plate combines four types of screws and is designed for the left and right femur in order to cover different femur neck anteversion.

Most popular related searches

soft tissue

lower extremity

High grade Titanium material
Anodized type II
Reduced risk of cold welding
Good biocompatibility
Available in left and right plates
Distal head contoured design for optimal positioning
2 to 16 holes
K-wire holes supports plate positioning
Limited contact profile to protect the blood supply
Conical plate tip
Rounded edges and shaft profile reduce the soft tissue irritation
Shaft with compression holes for dynamic axial compression for common Ø 4.5 mm cortical screws
Proximal locking holes for XLOC 7.3 screws cannulated
Shaft locking holes for XLOC Ø 5.0 mm locking screws

Femur XLOC - Proximal Plate

Features
