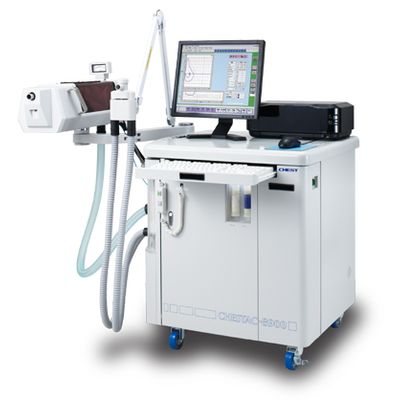

Model C-8900 - Pulmonary Function Test System

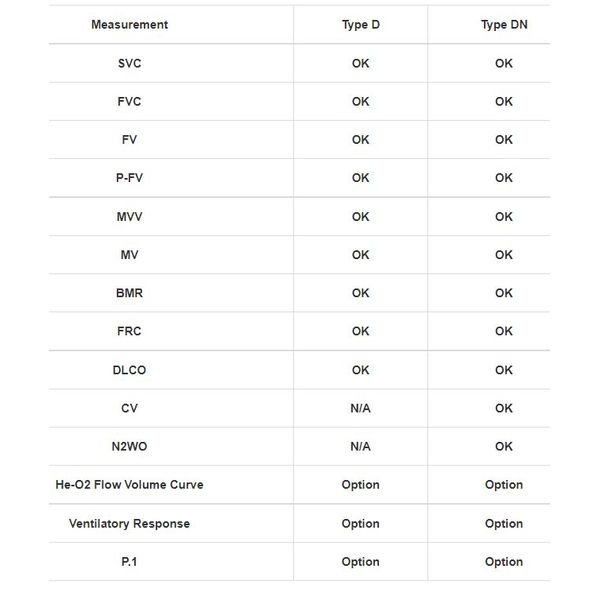

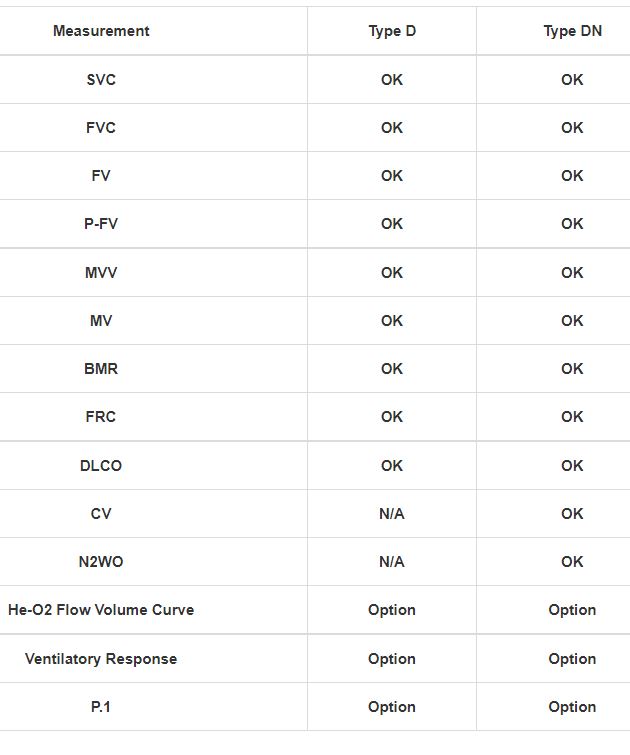

Calibration free. Rolling seal type volumetric spirometer. Spirometry, FRC, DLCO (Type D) + CV and N2WO (Type DN). User-friendly software.
Volume detection: Rolling seal type spirometer
Volume range: 0 to 10L
Flow detection: Volume differential method
Flow range: 0 to +/- 14L/s
Frequency: 0 to 10Hz
Internal resistance: 0.1cmH2O/L/s
Accuracy: Within +/- 2% or +/- 50mL, whichever is greater
Gas control: Automated computer control
Gas ejection: Automated washout
Gas meter calibration: Automated calibration
Flow sensor calibration: Not required
CO analyzer
Method: Electrochemical cell
Range: 0 to 0.33%
Response: 30sec
He analyzer
Method: Thermal conductivity type catharometer
Range: 0 to 10%
Response: 10sec
Power requirement: AC100V - 240V, 50/60Hz
Power consumption: Approx. 550VA (main unit)
Dimensions: 770 (W) x 690 (D) x 800 (H) mm
Weight: Approx. 110 kg
