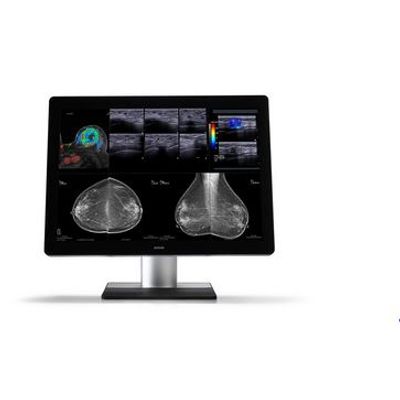

Coronis Uniti - Model MDMC-12133 - Radiology Display
Meet Coronis Uniti®. The only display explicitly designed for both PACS and breast imaging. Unique in its representation of calibrated color and grayscales. Remarkable in its 2D and 3D capabilities. Capable of both static and dynamic imaging. Together, these features will forever change the way you work.
12MP diagnostic display system for PACS and breast imaging
- PACS and breast imaging on one display
- In grayscale and color (featuring unique color calibration!)
- With touchpad for fast control
Coronis Uniti® delivers the first unified workflow – combining PACS and breast images on one workstation. It’s the solution that replaces all display configurations, eliminating the need for a multi-head display set-up or to move to another workstation to view additional exams.
- Combines PACS and breast images on one workstation
- Pushes productivity
- Speeds up reading sessions
Everything you see on the big, 12 MegaPixel screen is sharp and precise. That’s because every Coronis Uniti display is calibrated to meet the DICOM standard for grayscales and to guarantee consistent, perceptually linear color – an industry first.
- Features unique color calibration
- Fits more images on one display
- Reduces the need for panning and zooming
- Ensures uniform images at all times
- Unveils the smallest details
- Ensures automated QA and calibration
Coronis Uniti was designed with ergonomics in mind, mirroring a human’s natural field of vision to optimize your reading experience:
- Reduces reflection
- Enhances image sharpness
- Reduces eye fatigue
- Limits head, hand, and eye movements
- Increases reading comfort
A universal radiology display, Coronis Uniti is a one-time investment that will last a lifetime.
- Helps you see more patients per day
- Simplifies control and management of the display network
- Leads to major reductions in display cost
Technologies that enhance image quality:
- SteadyColorTM calibration technology to meet the DICOM standard for grayscales and to guarantee consistent, perceptually linear color.
- Color PPUTM technology to make every pixel permanently DICOM-compliant, ensuring consistent colors and grayscales.
- SmoothGrayTM for the best DICOM precision.
- MediCal QAWeb, a cloud-based technology for automated calibration and Quality Assurance.
- I-GuardTM front sensor to ensure 24/7 compliance to medical standards.
- DuraLight BrillianceTM to deliver exceptional brightness.
- LED backlights for efficient, long-lasting brightness.
- I-LuminateTM to double the brightness – to more than 2,000 nits.
Technologies that enhance productivity:
- RapidFrameTM to ensure crisp and in-focus moving images.
- Touchpad for faster control and smooth image manipulations.
- Conference CloneViewTM software to project images onto the large screen with ease.
- Purpose-powered display controllers for unmatched processing power, loading current and prior exams in no time.
- Ambient Light CompensationTM for consistent images in any lighting conditions.
- A film clip so you can use your display as a virtual light box to view film priors.
Technologies that enhance ergonomics:
- The highest resolution (12MP) on a large, bezel-free image area.
- SpotViewTM to focus the light on things you want to have a closer look at.
- OpticalGlassTM to reduce reflection, enhance image sharpness and hence viewing comfort. Durable and scratch-resistant.
- SoftGlowTM task light and wall light to reduce eye fatigue.
- Choose between Clear Base and Blue Base viewing modes on-the-fly.
- Screen technology IPS
- Active screen size (diagonal) 853.44 mm (33.6")
- Active screen size (H x V) 708.1 x 472.1 mm (27.8 x 18.6")
- Aspect ratio (H:V) 3:2
- Resolution 12MP (4200 x 2800 pixels)
- Pixel pitch 0.1686 mm
- Color imaging Yes
- Gray imaging Yes
- Bit depth 30 bit
- Viewing angle (H, V) 178°
- Optical glass Yes
- Uniformity correction PPU
- SteadyColor Calibration Yes
- I-Luminate Yes
- Ambient Light Compensation (ALC) Yes, reading room selection
- Ambient light sensor Yes
- Backlight Output Stabilization (BLOS) Yes
- Front sensor Yes, I-Guard
- Maximum luminance 2100 cd/m² (PPU on)
- DICOM calibrated luminance 1000 cd/m²
- Contrast ratio (panel typical) 1200:1 (PPU on)
- Response time ((Tr + Tf)/2) (typical) 16.5 ms
- Housing color RAL 9004 / RAL 9003
- Video input signals DisplayPort 1.2
- USB ports 1x USB 2.0 upstream (endpoint)
- 3x USB 2.0 downstream
- Power rating 24 VDC, 16.25 A; 5 VDC, 0.1 A
- Power requirements This device shall only be powered by the medical approved power supply of Efore (Roal Electronics), type RHPS390.
- Ratings marked on the medical approved power supply:
- Input rating: 100-240 VAC, 5.5 A, 50/60 Hz
- Output rating: 24 VDC, 16.25 A; 5 VDC, 0.1 A
- Power consumption 190 W (nominal)
- < 0.5 W (hibernate)
- Dimensions with stand (W x H x D) 795 x 610 x 300 mm (lowest position)
- Dimensions w/o stand (W x H x D) 795 x 572 x 131 mm
- Dimensions packaged (W x H x D) 960 x 715 x 395 mm
- Net weight with stand 33 kg
- Net weight w/o stand 23 kg
- Net weight packaged 42 kg
- Tilt -5° / +30°
- Swivel -23° / +23°
- Pivot N/A
- Height adjustment range 95 mm
- Mounting standard VESA (200 x 100 mm & 100 x 100 mm)
- Screen protection Protective, non-reflective glass cover
- Recommended modalities All digital images, including digital mammography and breast tomosynthesis
