Surgmed - Relton-Hall Scoliosis Operating Frame

• Provides lateral stability
• Reduces blood loss by keeping the anterior abdominal wall pendulous and free from external pressure
• Positioning on the antero-lateral supports facilitates correction of the scoliosis deformity
• Radiolucent supports allow for intraoperative imaging

• Removable
• Made from a dual density foam core and double stitched anti-bacterial vinyl covering
• Optional specially molded dry polymer pads for additional padding (assists with prevention of decubitus ulcers and necrosis which may result from procedures of extended duration)

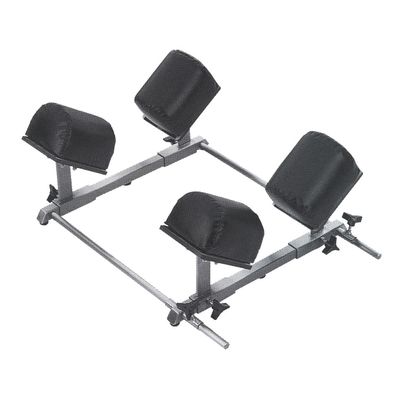

FRAME ASSEMBLY

• The frame consists of four well-padded vertical supports which are arranged in two V-shaped pairs
• Supports are arranged at a 35 degree inward tilt and are individually adjustable for lengthand width
• Three-point phenolic knobs with welded positioning attachments provide full adjustability
• Constructed from welded stainless steel for maximum patient support and radiolucent fiber-reinforced resin pad supports to allow for unobstructed visualization under imaging
