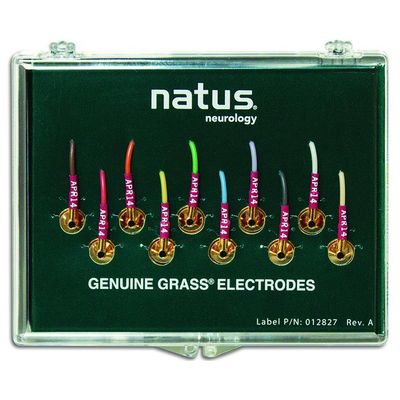

Genuine Grass - Reusable Cup EEG Electrodes

• Choice of 10 mm diameter cast cups in gold, silver or 6 mm diameter gold cast cups
• Choice of three unique, versatile 1.5 mm touchproof connectors
• Choice of lightweight or tangle-free lead wires; both include Kevlar^® strands for added strength
• Compatible with steam and EtO sterilization
• Ten lead wire colors: brown, red, orange, yellow, green, blue, violet, gray, white, tan
• USA customers may order directly from the Natus Medical Store – natusmedicalstore.com
• International customers, please contact Natus for your local distributor

Electrode

• Gold Cup: Heavy 24k gold plate over pure silver, burnished for smoothness
• Silver Cup: Pure silver, burnished for smoothness
• Hole drilled in stem permits full lead wire insertions for optimum electrical and mechanical bond. Double strain relieved for durability and to prevent fluid invasion to maintain purity.

Lead Wire

• Conductor: Compliant, non-kink 7-strands of silver plated copper alloy with Kevlar core for strength
• Insulation: Highly flexible Teflon^® (F, FH, FD Series) or extremely supple tangle-free Silicone (FS Series) Polyolefin heat-shrink tubing to prevent fluid invasion

Touchproof Connector, 1.5 mm (DIN 42 802)

• Connector: Copper alloy body, stainless steel sleeve
• Insulation: Pelprene thermoplastic resin (F, FS Series); Polyolefin (FH, FD Series)

Packaging

• Quantity: 10 electrodes per box
