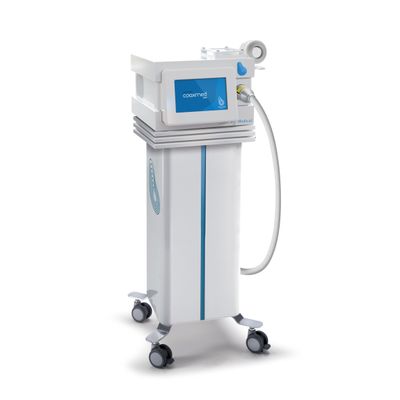

Biotec - Model CoaxMed One - Revolutionary Device

• Proven clinical efficacy
• Versatile and cutting-edge platform
• Ongoing technological update program
• Modular design with multiple application solutions
• A single compact and reliable device
• Extremely efficient management of the system
• Low maintenance costs and remote serviceability
• Minimal consumption of consumables

From the proven experience of Biotec Italia, a unique, original and complete concept
Optimal results thanks to the combination of different procedures, capable of treating subjects with different clinical cases.

Aesthetic treatment indications
Non-invasive facelift treatment
Treatment of acne and acne scars
Treatment for skin laxity reduction
Remodelling treatment

SkinTite®
Fractional monopolar RF. Rythmic suction to firm up sagging skin Single-use, sterilized electrode which acts at variable depths from 0.25mm to 2.5 mm.

Ablaze®: The cryo-radiofrequency that safely reshapes the skin.
Cooltec® cools down the head of the handpiece and protects the skin’s surface.
3Density® modulates the field frequency thus assuring a three-dimensional and even penetration of the radio frequency.
Propatch: made of disposable saline gel, it guarantees sterility and uniformity in radio frequency emission, eliminating the risks of burns.

EndoShape®: Traction and tissue biostimulation.
Synergistic action of rhythmic suction and radiofrequency; increases blood flow and lymphatic drainage, rejuvenating tissues and acting on cellulite and skin laxity.

CFU
The technological innovation, able to act in depth, previously only achievable with surgery.

General technical specifications
ELECTRICAL POWER REQUIREMENTS: 240 Vac 50/60 Hz
MAX POWER WATTAGE: 450 VA
FUSES: 2 x F4A 250 V
MAXIMUM SUCTION: 66.6 kPa
MINIMUM CRYO TEMPERATURE: -10°
SAFETY CLASS AND TYPE OF SECTION APPLIED: I BF
RISK CLASSIFICATION AS PER 93/42/EEC: Class IIb
DIMENSIONS (W x D x H): 680 x 470 x 1400 mm
MAXIMUM WEIGHT WITH HANDPIECES: 63 kg

Facial Radio Frequency
FUNCTION: Bipolar/Monopolar
FREQUENCY: 300 kHz to 1000 kHz
WAVE SHAPE: Amplitude modulated signal
MAXIMUM POWER: 100 W
OPERATING MODES: Continuous and Pulsed
ACTIVATION: Pedal

CFU
FOCAL DEPTH: 1,5/3/4,5mm
MAX POWER: 6/10W
APERTURE DIAMETER: 15mm
FREQUENCY: 4MHz

EndoShape

• In ABS material, the handpiece is electrically and thermally insulated, protecting patient and operator.
• he ergonomics, ease of handling and light weight of the handpiece make the treatment quick and easy, facilitating the fluidity of movements.
• 3Density mode that automatically modulates the frequency of radio frequency flow for three-dimensional and uniform penetration of thermal energy.

SkinTite

• In ABS material, the handpiece is electrically and thermally insulated, protecting patient and operator.
• Lightweight, so as to facilitate the specialist’s movements.
• The ergonomics of the handpiece makes it easy to handle, comfortable to use.
• Emission of the monopolar radio frequency over the entire length of the electrode.
• Rhythmic suction that favours subcutaneous drainage.
• Mesoroll, sterile and single-use electrode in AISI 316 LVM medical-grade stainless steel material, measuring from 0.25mm to 2.5mm depending on the area to be treated.

Ablaze

• In ABS material, the handpiece is electrically and thermally insulated, protecting patient and operator.
• The ergonomics, ease of handling and light weight of the handpiece make the treatment quick and easy, ensuring the fluidity of movements.
• Cooltec ® Mode, which cools down the head of the handpiece and protects the surface of the skin./div>
• High quality materials to handle high power (up to 100W) and high frequencies (up to 1000KHz).
• Propatch: disposable saline gel patch that guarantees sterility and uniformity in the emission of monopolar radio frequency, eliminating the risks of burns caused by the concentration of current in a single point.
• 3Density Mode that automatically modulates the frequency of the field for a three-dimensional and uniform penetration of the radiofrequency.

CFU

• The ultrasonic wave emitted by the centerless transducer flows precisely into the point of focus, where it reaches a temperature above 65°C, necessary to promote the contraction of collagen fibres without damaging the skin on the surface.
• The unique ergonomic design of the cartridge makes work easier, allowing wide visibility and accurate precision on the emission zone. The different application modes simplify operation.
• Easy focalization system that concentrates the ultrasonic energy precisely in the skin layer to be treated, at the desired depth, generating a regenerative thermal energy.
• The EASYFLOW technology emits a succession of focused energy points at high speed and at different frequencies, allowing to speed up the procedure considerably.
