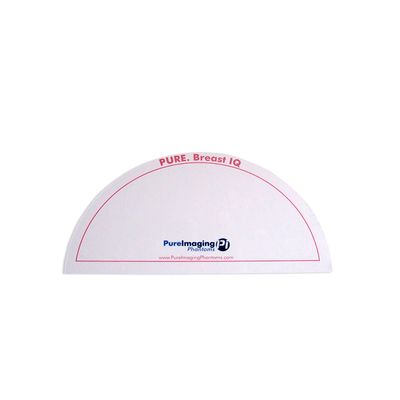

Model PURE.Breast IQ - Routine Medical Imaging Test
This is a simple and efficient-to-use routine medical imaging test phantom which is used daily to evaluate the imaging performance of mammography systems. You can simply check the grey-scale, count the number of contrast details and resolve the line patterns. If these numbers ever avert from the norm then this may indicate deterioration of image quality in your fluoroscopic imaging system.
Most popular related searches
medical imaging testing
routine medical imaging
medical imaging
medical testing
medical test
mammography system
medical imaging phantom
mammography
medical phantom
It allows for evaluation of:
- Brightness and contrast adjustment
- Imaging contrast: low-contrast resolution (1.8 to 5 line pairs/mm) and high-contrast resolution (1.0 to 20.0 line pairs)
- Greyscale and Sensitometric measurements
- Resolution limits (1.0 to 20.0 Line pairs/mm)
- Low-contrast large-detail detectability (12 details of 5.6mm diameter) and High-contrast small-detail detectability (11 details of 0.5 and 0.25mm diameter)
- Micro-calcifications replication of average sizes 125, 225 and 325 microns
- omogeneity
- Free area for signal calibration
Specification:
- Dimensions: 240mm diameter semi-circle
Comes with:
- Standard PMMA slabs: 6 pieces of 10mm thick x 240mm dia. semi-circle
- 2 pieces 5mm thick x 240mm dia. semi-circle
- Detailed user manual
- Robust carrying case for easy transport
Complies with:
- IEC 61223-3-2
