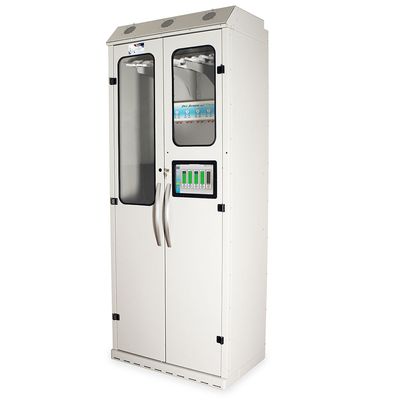

Harloff - Model SC8036TD-T3316D -Scope Cabinet Tracking System
The SC8036TD-T3316D incorporates a state of the art scope cabinet tracking system that maintains records of scope drying events, user access, check-ins, check-outs and tracks other customizable settings unique to each endoscope. At a glance the color touch screen digital display, accessed by an authorized passcode, displays scope inventory, reprocessing status, scope processing times and adjustable timing options including drying time, pre-drying time, venting time, hang time limits and more. The scope tracking cabinet itself dries endoscope exteriors with HEPA filtered positive pressure forced air, using three intake fans and two exhaust fans.
The Dri-Scope Aid® system, the industry leading internal lumen drying system, pumps additional HEPA filtered air through the internal endoscope channels to fulfill forced air recommendations based on AORN, SGNA and AAMI guidelines (including ANSI/AAMI ST91:2021 updated guidelines). This scope drying and tracking cabinet provides a complete solution for facilities requiring optimal endoscope drying capabilities combined with high level digital tracking features.
- Positive pressure fully redundant fan system
- Unit features three intake fans and two exhaust fans
- Fan run time is fully adjustable and activated each time cabinet is closed
- HEPA filter removes 99.7% of particulates, .03 Microns
- Holds 14 scopes with secure adjustable mounting system
- Replaceable HEPA Filter system without removal of scopes
- Medical grade electrical system
- Tempered glass double doors
- Multiple locking options available including badge entry
- Easy to clean removable drip tray
- Cabinets are delivered fully assembled
- Harloff has Industry Best 12 year limited manufacturers warranty for Sales to US and Canada
CABINET DIMENSIONS
- 93” H x 36” W x 24” D
COLORS
- Available in more than twenty color options
