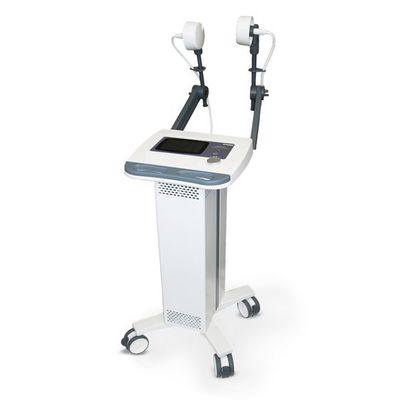

Gymna - Model Thermo 500+ - Short Wave Diathermy Device
The Thermo 500+ is a short wave diathermy device that generates electromagnetic energy for medical application. The waves penetrate deep into the body and can have thermal and athermal effects. The thermal effect consists of a heating up that considerably improves the circulation. The athermal effect generates cellular effects. Both contribute to strong physiological effects that make the method suitable for application in a wide range of conditions.
Most popular related searches
shortwave diathermy
diathermy device
soft tissue injury
diathermy
soft tissue
tissue injury
medication application
clinical regulations
surgical glove
musculoskeletal disorder
- Chronic musculoskeletal disorders
- Acute soft tissue injuries
- Circulatory complaints
- Dimensions (H x L x W): 38,19 x 18,5 x 18,5 In
- Weight: 83,78 Lbs
- Mains Supply: 100-240 Vac, 1kVA max, 50/60Hz
- Frequency: 27,12 MHz
- Output Power: 400 W maximum in Continuous Mode; 1000 W maximum Peak Power in Pulsed Mode
- Output Modes: Continuous, Pulsed 1 in 3, 2 in 3 & 3 in 3
- Type: BF (EN 60601-1)
- Pulse Width: 20 - 400µs
- Pulse Frequency: 5 - 800 Pulses Per Second
- Tuning: Automatic
- Timer: 0 - 30 minutes with termination of output & alarm at end of treatment
- Classification: Class 1
- Continuous & pulsed short wave therapy in one device
- Wide range of pulse frequencies & widths
- Output automatically tunes with the patient
- Colour touch screen for use with surgical gloves
- Clear user interface allows for quick set-up
- On screen user assistance & pictorial guidance with clinical protocols
