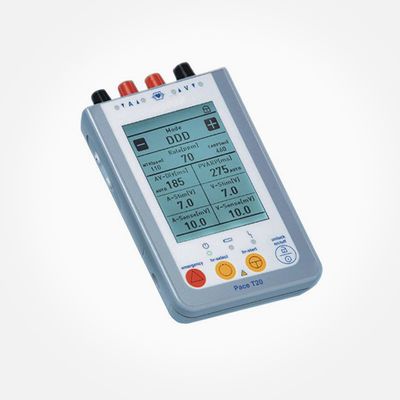

livetec - Model Pace T20 - Temporary Dual-Chamber Pacemaker

• The backup battery system also offers capacity for up to 75 hours after discharge of the main batteries and allows a relaxed replacement of batteries even during stimulation
• Long battery life of up to 150 hours
• Precise and illuminated LCD touch screen
• Simple locking of functions against unintentional operation
• Automatic and manual setting of TARP, AV-Delay, PVARP and MTR

The PACE T20 is the first external pacemaker on the market to offer a patented touch screen system that guarantees fast, safe and easy handling without submenu. A context-sensitive display structure that changes according to the selected mode makes handling even easier. The two-chamber model PACE T20 delivers all important pacemaker modes.

• Easy attachment of the device to the patient or to the bed using mounting adapters (holding cuffs)
• Digital precision
• Potential-free outputs
• Two-phase stimulation pulses incl. autohort neutralise electrical charges at the electrodes
• Defibrillation protection
• Patented clamps with a diameter of 0,9 to 2,1 mm, protected from overturning
• Easy cleaning, since rotary knobs have been omitted

• Stimulation modes: A00, AAI, AAT, V00, VVI, VVT, DDD, DDI, DVI, DAI, D00, DDT, VDD, VAT, Emergency and High Rate Stimulation
• Stimulation amplitude: 0.1-20 V
• Pulse width atrium: 0,7 ms
• Pulse width ventricles: 0,5 ms
• Pulse width High rate stimulation: 1 ms
• Sensitivity atrium: 0,1 mV – 20 mV
• Sensitivity ventricle: 1 mV – 20 mV
• Pulse rate: 30-250 ppm
• High rate: 40-1000 ppm, with backup stimulation in the ventricle (VVI, 40ppm)
• Emergency stimulation: D00/≥ 10 V/≥ 80 ppm
• Refractory time atrium:
  • 400-200 ms for AXX modes (depending on pulse rate)
  • Tarp for bicameral stimulation
• Refractory time ventricle:
  • 250-200 ms for VXX operating modes
  • 225-175 ms for two-chamber stimulation (depending on pulse rate)
• AV delay: 15-300 ms, automatically or manually adjustable
• PV delay: 15-250 ms
• PVARP: 100-500 ms, automatically or manually adjustable
• TARP: 130-310 ppm, automatic or manually adjustable
• MTR: 110-270 ppm (automatic depending on the pulse rate)
• AV-Blanking: 55 ms
• VA-Blanking: 65 ms
• Security window: 95 ms
• Run Away Protection
• Noise detection
• Warnings: Short circuit, open inputs, impedance, pulse rate warning, noise, EOL, self-test/system error
• Defibrillation-protected application part of type CF.
• 2x AA batteries, 1,5 V, 2600 mAh
• Service life with 1 battery: >= 150 hours
• Backup battery: 1350 mAh
• Dimensions: 155 x 96 x 37 mm
• Weight: 365 g

• Protection cover
• High-quality, restorative patient cables (manufacturer livetec GmbH)
• Compatible resterilisable patient cables, disposable patient cables, heart wires and inflow electrodes of FIAB)
