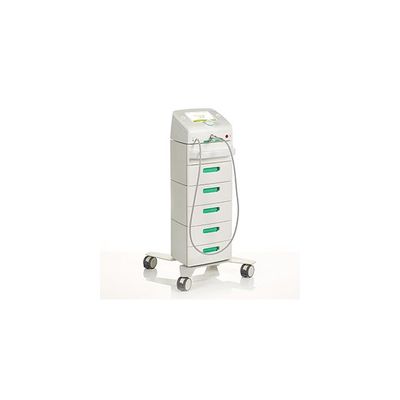

iLux XP - THEAL Therapy Device
iLux XP is an innovative system that emits laser light with three or four separate wavelengths for THEAL Therapy. iLux XP is capable of mixing up to 4 wavelengths (650nm + 810nm + 980nm + 1064nm) thanks to the innovative Lambda Mixer system and emits laser light with power up to 30W. iLux XP modulates laser light to adapt therapy to the specific patient and specific pathology. In order to fully adjust the therapy, iLux XP has 11 different emission modes, some of which are patented, such as the stochastic E²C evolution mode. In addition, iLux XP lets you create customized output modes by combining different emission modes for each wavelength, if needed, thanks to the revolutionary Wave Creator system. iLux XP features the innovative Light Blade handpiece, equipped with patented magnetic technology, and expandable with 10 different applicators to maximize therapy.
- Technology: Mectronic’s own MecOs 3.0 OMNIA Real-Time Operating System
- Wavelenght: 650nm, 810nm, 980nm, 1064nm
- Guide Light: 650 nm - up to 3mW
- Laser power: Up to 30W
- Emission: Continuous (CW), Pulsed, Super-pulsed, E²C (patented stochastic mode), AntInf, HPM and Dimmer
- Personal emission: Wave Creator
- Operation mode: Manual, Single Pulse, Burst and Custom mode
- Special modes: Joule mode, Timer mode, Trigger Point mode, Effect Finder, Tissue Target System and Temperature Control mode
- Effect Mode: 5 specific emission modes to maximise the 5 main effects of THEAL THERAPY: Bio-stimulant, Analgesic, Anti-inflammatory, Anti-edema, and Tension Relief
- Pathologies: Over 90 therapeutic protocols with interactive illustrations and protocols sub-divided by phase
- Calibration: Graphic and acoustic control system for laser emission at handpiece exit in accordance with norm CEI EN 60825-1
- Display: Colour TFT 8” Touch - screen
- Supply: 100 ÷ 240V 50 ÷ 60Hz
- Absorption: 160 VA
- Dimensions: 300 x 250 x 170 mm (case)
- Peso 300 x 250 x 1020 mm (with trolley)
- Weight: 5,5 kg (case)
- 20 kg (with trolley)
- Laser Class: IV
- Beam divergence: 25°
- Puls Width: 1 - 1000 ms
- IP Classification: IPX0 device
- IPX0 handpiece
- IPX4 pneumatic footswitch
- Terms operating:
- 0 ÷ 30°C
- 30 ÷ 75% humidity non-condensing
- 700 ÷ 1060 hPa
- Terms Transportation and storage: -10 ÷ 55°C
- 10 ÷ 100% humidity non-condensing
- 500 ÷ 1060 hPa
- EMP: Maximal emission permit on skin 5600W/m²
- EMP: Maximal emission permit on cornea 9W/m²
- DNRO: Nominal Distance of Ocular Risk 4m
- Conformity: IEC/EC 60601-1; IEC 60601-1-2; IEC 60601-2-22
- Directive 93/42: llb Classification
WHY CHOOSE ILUX XP?
iLux XP is innovative and functional a tool that you cannot do without.
iLux XP has become the modern benchmark in photo-therapy and laser therapy thanks to seven patents, registered by Mectronic.
iLux XP has two configurations, 16W and 30W, with patented mix of wavelengths.
Patented IR thermal control: iLux XP operates on many pathologies of patients with different phototypes and different tissue types.
Lambda Mixer: until now the wavelength mix was defined and could not be changed, now the operator has the absolute control.
