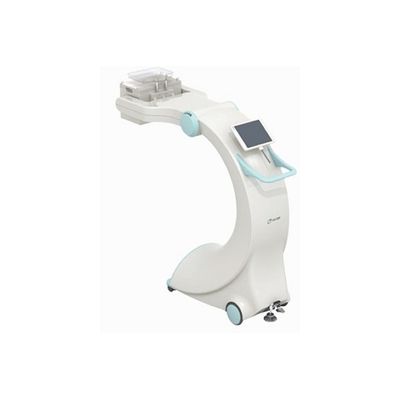

NuCare - Model JanuCam™ - Thyroid Gamma Camera

EASY OPERATION

• The combination of vertical and tilt motion, JanuCam™ provides for effortless and precise placement of the measuring head to nearly any positions. In addition the open design enables the system can image patent either on a chair or a patient bed.
• Touch screen feature provide additional comfort to the user for customized preset, patient positioning and data acquisition.

HIGH RESOLUTION SFOV IMAGES

• The JanuCam™ provides superior image quality enabled by small 1.5 inch PMTs.
• The compact SFOV head is suitable for accessing organs such as thyroid, breast and joints.
• Imaging protocol specific accessories and collimator design enhance the quality of high resolution image beyond superior.

• System :
• Vertical motion : 680 mm (690 -1370 mm detector position from the floor)
• Tilt motion : -90 to 90 degree
• Foot print : 1520×570 mm
• Dimension/weight : 570(W)×1520(D)×1400(H) mm / 240kg(529lb)
• Detector
• NaI(Tl) : 276.3 x 168.3 mm
• Thickness : 8 mm
• PMT : 32ea, 1.5 in.
• Lead shield : 8 mm
• Collimator : LEGP, LEHR, LEPH
• NEMA performance
• FOV : 230×150 mm
• Energy : 20 – 200 keV
• Resolution : ?9.9% @ 140keV(Tc-99m)
• Intrinsic Uniformity : CFOV (2, 2.5%), UFOV (2, 2.5%)
• Intrinsic resolution : CFOV: 3.3, UFOV: 3.8 mm
• Intrinsic linearity : CFOV (0.2, 0.2 mm), UFOV (0.2, 0.7 mm)
• Max. count rate : 200 kcps (20% window)
• Extrinsic resolution : 6.5 mm FWHM (LEGP)
• Sensitivity : 200 cpm/uCi (LEGP)
• Acquisition console
• A/D conversion : 40 MHz (X,Y,Z), 1024 ch,
• Max image pixel : 4096×4096
• Pile up : Pile up rejection
• Documentation : Color laser
• Optional accessories : Dicom, phantoms, UPS, etc.
