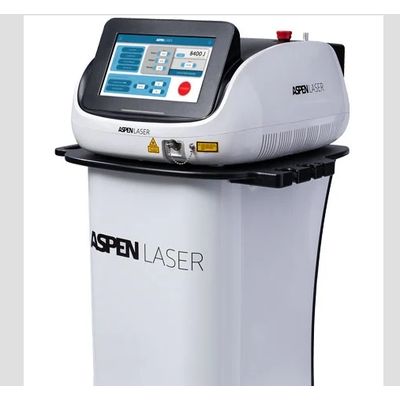

Aspen - Model Apex Series - Tri-Wave Laser
The world’s first and only laser device of its kind, the Apex Tri-Wave Laser Series is changing the way health care professionals are treating pain and injuries. Uniquely featuring three wavelengths of 810nm, 980nm and 1064nm, the Apex Tri-Wave incorporates 15 watts of high power with each wavelength for a combined total output of 45 watts.
The engine of the Apex Laser are PowerDose Diodes that provide the highest Average Power output. In contrast to laser devices that provide Peak Power, Average Power has proven to be a key for generating the best clinical outcomes.
- Unprecedented power per wavelength
- Durable design for long life operations
- German manufactured for internationally recognized quality
Wavelength Multiplexer Technology incorporates multiple wavelengths operating in various configurations that are emitted from a single output. This provides better penetration, from shallow to deep, with optimal tissue saturation required for therapeutic treatments.
- Broadest range of wavelengths providing optimal treatment outcomes
- Directly select one to three wavelengths
- Adjustable power levels per wavelength
Featuring complex and sophisticated laser operating modes, SmartMode Controls offer Continuous Wave (CW) emissions with pulsing emissions to provide unlimited opportunities for precise and desired clinical treatments that can be adjusted with each patient.
- Fast treatments with continuous wave
- Broad range Hertz (frequency settings) for pulsing treatments
- Patient response driven protocols
Consistent and replicable treatment results are now possible with Patient Response Driven Protocols. In contrast to Preset Protocols, PRD Protocols are based on a wide range of patient characteristics and responses to each treatment. This allows the Apex Laser Series to provide the broadest range of features that are paramount to stimulate deep musculoskeletal, vascular, lymphatic, and neurological structures.
- Ability to directly select and adjust operating laser parameters
- Avoid under-dosing (low joules) and under-treatment (small area or incorrect wavelength)
- Reduce conditioning response by variations and adjustments with each treatment
Model: Apex Series 45 watt / 60 watt
SKU: AL-T45x / AL-T60x
Laser Type: GaAlAs Diode Laser
Dimensions: inches: 16W x 19.5L x 8H
Weight: 32 LBS (14.5 KG)
Wavelength, Laser: 810nm + 980nm + 1064nm
Maximum Power: 45 watts / 60 watts
Operation Modes: Continuous Wave (CW) and Pulse
Pulse Duration: 10μs-3s
Repetition Rate: 0.2Hz-20KHz
Fiber Sizes: 550 uM
Fiber Connector: SMA905 Connector
Pilot Beam: Red Diode Laser Of 635nm, Power<5mW
Control Mode: Color Touch Screen
Voltage/Current Rating: 110/220 VAC, 5A , 50/60 Hz
Safety Compliance: CE0197
810nm Wavelength
The 810nm wavelength allows rapid activation of the haemoglobin oxygenation process: transferring the correct energetic supply to muscles and tendons, facilitating regeneration. Clinical studies indicate that 810nm largely affects mitochondrial cytochrome c oxidase by increasing cytosolic calcium while decreasing mitochondrial calcium.
980nm Wavelength
The 980nm wavelength optimizes the action on thermal and mechanical receptors for a rapid analgesic effect, resulting in improved pain control, circulation, and muscle relaxation. Clinical studies indicate that 980nm primarily affects temperature-gated calcium ion channels.
1064nm Wavelength
The 1064nm wavelength is a longer wavelength that can penetrate deeper into tissue. Clinical studies indicate that it has the least dispersion within biological tissues due to its decreased melanin absorption. The result is deep activation of metabolic processes vital for all cellular activities.
