Freefix - Ulnar Shortening System

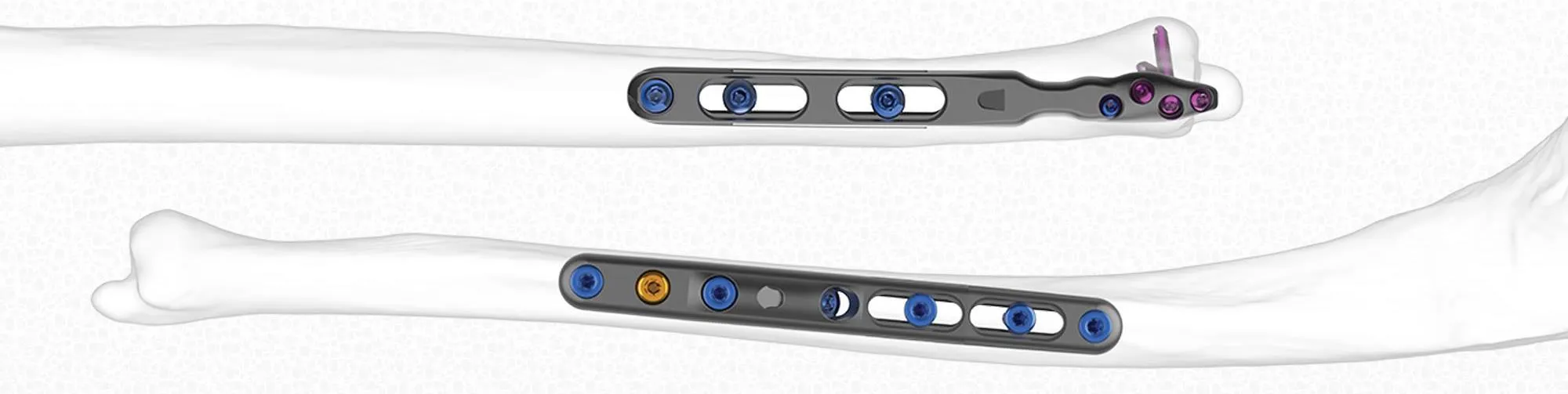

Distal Osteotomy
Metaphyseal location facilitates healing and maintains normal distal interosseous ligament tension

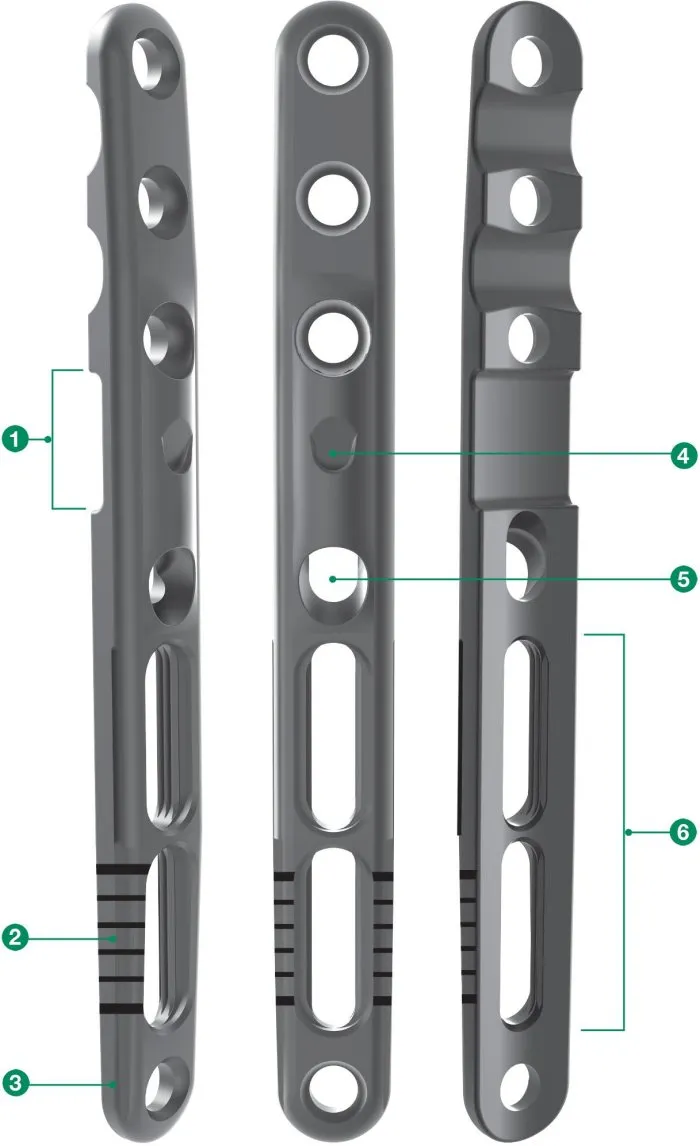

Proximal Osteotomy
Increases tension on distal interosseous ligament to enhance DRUJ stability

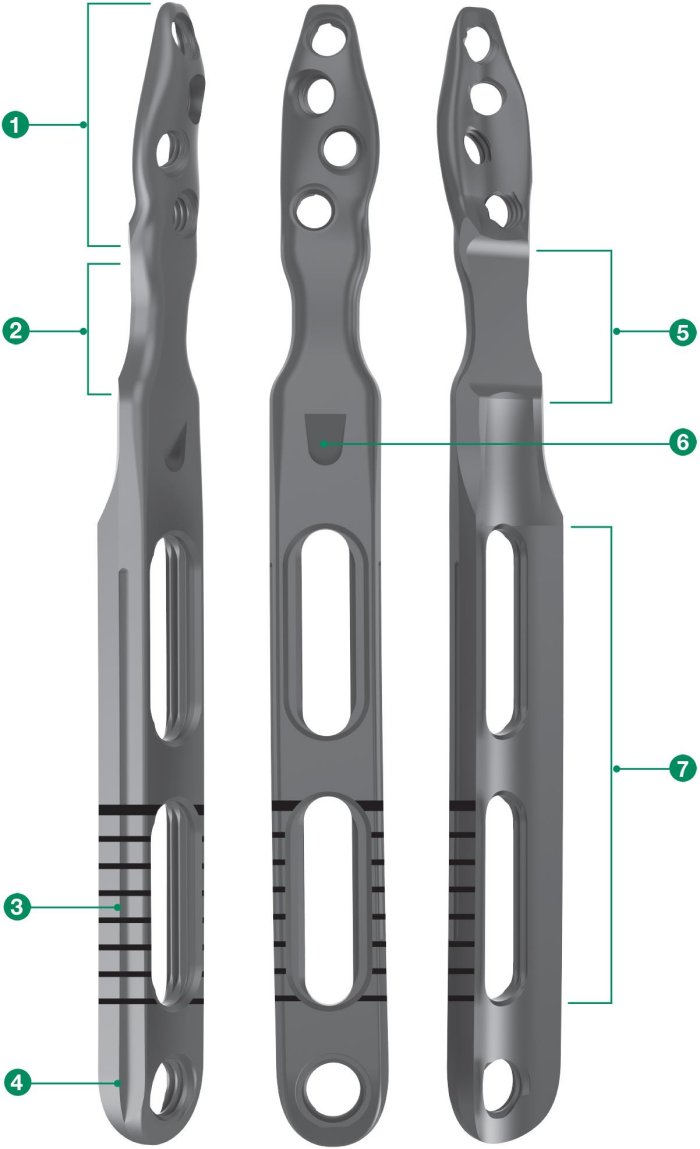

1. Anatomic head and neck for ideal distal placement
2. PROTEAN® bending feature to adjust neck angle
3. Laser marking every 2mm to set osteotomy length
4. Guide rails to secure cutting guide
5. Undercuts for saw blade clearance
6. Plate notch for compression forceps
7. FREEFIX® slots accommodate both compression and locking screws at any position within the slot

Distal and proximal cutting guides allow blade access from either side of the plate

• Distal Plate Guide

• Streamlined procedure that maintains rotational stability
• Apply the plate to the bone with the proximal screws in the most proximal slot position.
• Slide the cutting guide to the most distal position and secure with a k-wire(s). Perform the first cut.
• Slide the cutting guide proximally to the desired shortening length and resecure with a k-wire(s). Perform the second cut and remove the cutting guide.
• Remove the bone wedge, loosen the slot screws and compress the fragments using the compression forceps.
• Retighten the most distal slot screw while maintaining compression with the forceps.
• Remove the compression forceps, retighten the proximal slot screw and place the final screw in the most proximal hole.
